BIOS
| BIOS ACPI |
3.0 |
| BIOS memory size |
16 MB |
| BIOS type |
AMI |
| BIOS features |
PXE boot, Plug & Play, SMBIOS 2.7, Wake-on-LAN |
Processor
| Number of processors supported |
2 |
| Intel Xeon series |
E5-2600 |
| System bus type |
QuickPath Interconnect (QPI) |
| Built-in processor |
N |
Expansion slots
| PCI Express x16 slots |
8 |
| PCI Express x8 slots |
2 |
| PCI Express slots version |
3.0 |
Memory
| Supported memory types |
DDR4-SDRAM |
| Memory voltage |
1.2 V |
| Supported RDIMM clock speeds |
1600, 1866, 2133 MHz |
| Maximum RDIMM memory |
786 GB |
| Maximum internal memory |
3072 GB |
Networking
| Ethernet LAN data rates |
1000 Mbit/s |
| LAN controller |
Intel I350-BT2, Intel X540-AT2 |
Storage
| Supported hard disk drive sizes |
2.5, 3.5 " |
| Supported storage drive interfaces |
SAS, Serial ATA, Serial ATA III |
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
10 |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Design
| Form factor |
4U |
| Fan diameter |
120 mm |
Additionally
| Chipset |
Intel C612 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
4U, 438 x 770 x 176 mm, 35 kg, 200-240 V, 10 - 35°C

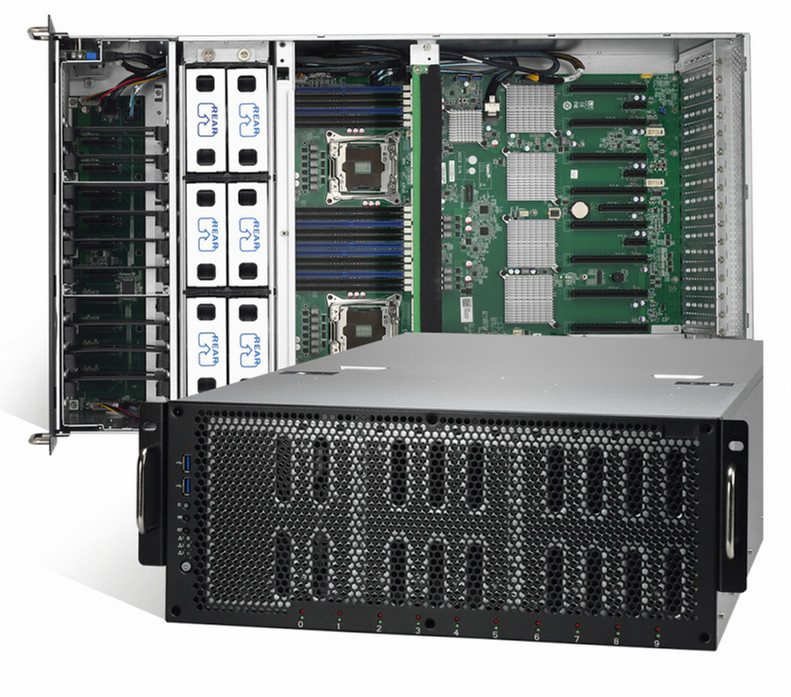

The Tyan FT77C-B7079 by PNY server supports up to 8 x Tesla K40 or K80
The Tyan FT77-B7079 by PNY delivers high density computing power, scalable expansion capability, intelligent thermal solution and green design, making it an ideal choice for applications in the HPC field of life and medical science, engineering science, financial modeling and virtualization.
The GPU accelerates applications running on the CPU by offloading some of the compute-intensive and time consuming portions of the code. Designed for high performance in massively parallel computing environments, the PNY product portfolio of TYAN server and NVIDIA GPUs easily meet users’ complex workloads requirements while accelerating general computing capability.
