BIOS
| BIOS ACPI |
2.0 |
| BIOS memory size |
8 MB |
| BIOS type |
AMI |
| BIOS features |
PCI 2.3, PXE boot, Plug & Play, SMBIOS 2.3 |
Memory
| Supported UDIMM clock speeds |
1066, 1333, 1600, 1866 MHz |
| Supported memory types |
DDR3L-SDRAM |
| Memory voltage |
1.35, 1.5 V |
| Supported RDIMM clock speeds |
1066, 1333, 1600, 1866 MHz |
| Maximum UDIMM memory |
192 GB |
| Maximum RDIMM memory |
768 GB |
| Maximum internal memory |
768 GB |
Processor
| Number of processors supported |
2 |
| Intel Xeon series |
E5-2600 |
| System bus type |
QuickPath Interconnect (QPI) |
| Built-in processor |
N |
Performance
| Integrated BMC with IPMI |
Y |
| Intelligent Platform Management Interface (IPMI) support |
Y |
| PC health monitoring |
CPU, FAN, LED, Power supply, Temperature, Voltage |
Networking
| Ethernet LAN data rates |
1000 Mbit/s |
| LAN controller |
Intel I350-BT2 |
Technical details
| PCI Express x1 (Gen 2.x) slots |
3 |
| PCI Express x16 (Gen 3.x) slots |
8 |
| Number of 2.5" bays |
6 |
Power
| Number of redundant power supplies supported |
3 |
| Number of redundant power supplies installed |
1 |
| Power supply |
2400 W |
Design
| Redundant fans support |
Y |
| Form factor |
4U |
| Fan diameter |
120 mm |
Storage
| Supported hard disk drive sizes |
2.5 " |
| Supported storage drive interfaces |
Serial ATA II, Serial ATA III |
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
6 |
Graphics
| Discrete graphics memory type |
GDDR5 |
| Number of discrete graphics adapters |
8 |
| Discrete graphics adapter memory |
6 GB |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel C602 |
| System bus data transfer rate |
8 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

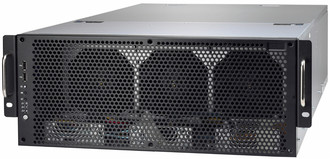

TYAN FT77A-B7059, Intel C602, 2 x Intel Xeon Processor E5-2600 Series, 24 x DDR3, 8 x Tesla K20x 6GB GDDR5, 6 x 2.5" Hot Swap, 4U Rackmount
The Tyan FT77-B7059 by PNY delivers high density computing power, scalable expansion capability, intelligent thermal solution and green design, making it an ideal choice for applications in the HPC field of life and medical science, engineering science, financial modeling and virtualization. The GPU accelerates applications running on the CPU by offloading some of the compute-intensive and time consuming portions of the code. Designed for high performance in massively parallel computing environments, the PNY product portfolio of TYAN server and NVIDIA GPUs easily meet users’ complex workloads requirements while accelerating general computing capability. PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre- and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines.
