Ports & interfaces
| Audio connections |
Y |
| DVI-D ports quantity |
3 |
| Number of microphone inputs |
3 |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Video port type |
DVI-D |
| PS/2 ports quantity |
1 |
| Headphone outputs |
3 |
Additionally
| Wireless technologies |
Wired |

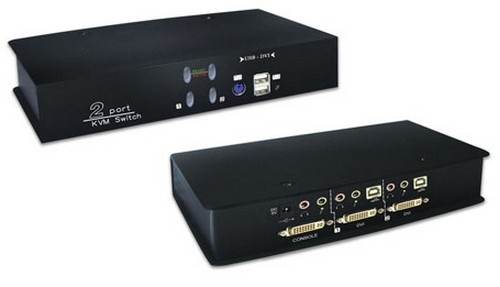

DVI USB KVM Switch, PC side: 2x DVI, 2x USB2.0 B, 4x 3.5mm Audio, PC Selection: 1x DVI, 2x USB2.0 A, 1x MD-6F, 2x 3.5mm Audio
This DVI USB KVM Switch allows you to control up to 2 computers from one USB Keyboard, USB Mouse, DVI Monitors, Speaker and Microphone. Support both panel button and hot-key function to switch among computers.
- Automatic KVM switch with DVI, Audio, and Mic.
- Access 2 computers by one KVM switch.
- Consloe side connector: DVIx1, USB Type Ax2, MD-6Fx1.
- Fully USB V1.1 specification compliant.
- Support its driver-free and plug-n-play.
- MAX. resolution: 1920*1200.
- Support Auto Scan Mode for users to monitor computers easily.
- Support both "panel button" and "hot key" to switch among computers.
- Support windows, macintosh, linux, freebsd, and sun system.
