Networking
| Cabling technology |
10/100/1000Base-T(X) |
Ports & interfaces
| Audio connections |
N |
| PS/2 ports quantity |
2 |
| Mouse port type |
USB, PS/2 |
| Keyboard port type |
USB, PS/2 |
| Number of computers controlled |
16 |
| Video port type |
VGA |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
2 |

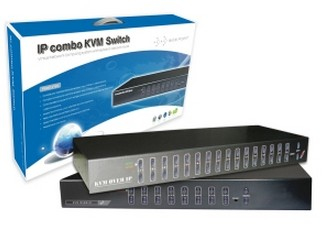

KVM-over-IP Switch, PC side: 16x VGA, Console Side: 1x VGA, 2x MD6F, 2x USB2.0 A, 1x DB9Pin, IP Connector: 2x RJ45
The MU161X-IP is an enterprise-class, secure,KVM-over-IP switch that provides remote BIOS-level control of up to 16 servers.This KVM-over-IP solution has standard features such as Virtual Media and dual power,that Maximize, performance,security,reliability and versatility . Universal Virtual Media lets administrators perform tasks such as installing software transferring files and backing up data. A user can mount drives and media from the user’s desktop to servers in the data center during a KVM session. PCT’s Virtual KVM Desktop allows users to scale a target server’s display to any size from thumbnails to full screen video.Transparent keyboard handling sends virtually every keystroke combination straight to the server,for a user experience that’s nearly indistinguishable from an at-the-rack connection .Plus,it provides an intuitive user experience-whether the target servers are being accessed locally or remotely-through a common browser-based user interface.
This interface supports the industry’s widest range of operating systems and browsers .The Dominion MU161X-IP also features Absolute Mouse Synchronization,which reduces installation time and sets a new standard for mouse synchronization.Combined with high-quality,1600*1200 video resolution,Virtual KVM Desktop and virtual Media features ,it provides the industry’s most flexible and responsive remote user experience available.
The Dominion MU161X-IP solution consists of the KVM-over-IP switch and Computer Interface Modules(CIMS).
CIMs connect to the server’s KVM ports and can be located up to 150 feet aWay from the switch using UTP(Cat5/5e/6)cabling .CIMS also provide keep-alive keyboard/mouse emulation.
Access from Windows ,Linux,Sun or Mac desktops via a wide range of Web browser or standalone client.
Remote client software is automatically downloaded via a web browser; standalone versions of client software can be pre-installed Provides its entire feature set out of the box:Virtual Media, 128-bit AES or RC4 encryption,dual power supplies and dual gigabit Ethernet ports with failover.
SNMP.Syslog,as well as integration with LDAP,Radius and Active Directory authentication.
- Manage servers around the world.
- Can be powered by Power-over-Ethernet.
- Keyboard and Mouse Connections can be hot-plugged on most operating systems without bringing down the largest server.
- Secure encryption of keyboard, mouse and video signal, as well as virtual media.
- Supports strong password settings and password.
- Remote KVM (keyboard, video, and mouse) access over IP or analogous telephone line (modem needed).
- Full control under any OS, in BIOS level, during boot, or at Blue Screens.
- No additional software necessary on client console side.
- Remote mass storage control and redirection.
- Remote control over Java-enabled Browsers.
- SSL Secure access through certificate authentication and data encryption.
- SSL 256-bit encryption of all transmitted data.
- RSA 1024-bit encryption.
- Auto-optimize the frame rate and video quality according to the bandwidth availability.
- Automatically senses video resolution for best possible screen capture.
- High-performance mouse tracking and synchronization.
- One,two or four remote KVM-over-IP channels.
- Browser-based local user port for at-the-rack access.
- Plug-and-play installation.
- Platfrom Independent-CIMs available for PS/2, USB.
- USB with Virtual Media, Sun and Sun USB.
- Flash firmware upgrades.
