Ports & interfaces
| Audio connections |
N |
| PS/2 ports quantity |
2 |
| DC-in jack |
Y |
| Mouse port type |
USB, PS/2 |
| Keyboard port type |
USB, PS/2 |
| Number of computers controlled |
16 |
| Video port type |
VGA |
System requirements
| Mac operating systems supported |
Y |
Display
| On Screen Display (OSD) |
Y |
Additionally
| Wireless technologies |
Wired |

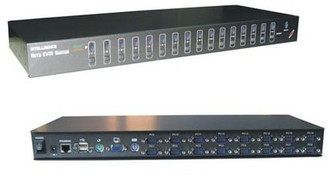

PS/2 / USB KVM Switch, PC Side: 16x VGA, Console Side: 1x VGA, 2x USB2.0 A, 2x MD-6F
This PS/2 or USB KVM Switch provides an easy access to multiple PS/2 or USB PCs from one PS/2 or USB keyboard, video, mouse. No interface card or software is required for configuration. Installation is as easy as connecting PS/2 or USB cables between KVM Switch and computers.
- Console your Keyboard/Mouse via either way of PS/2 or USB arbitrarily.
- Complex connections with PCs via either way of PS/2 or USB arbitrarily.
- Controls 8/16 computers from a single console (Keyboard/Mouse) over PS/2 and/or USB connections.
- Support Windows, Linux, MacOS9, Sun Microsystems.
- Features OSD (On Screen Display.).
- MAX. resolution: 1600*1200.
- Daisy Chainable-contron up to 3 levels (Up to 512 PCs.).
