Processor
| Processor frequency |
775 MHz |
| Graphics processor family |
AMD |
| CUDA |
Y |
| Stream processors |
400 |
Memory
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
128 bit |
| Memory clock speed |
950 MHz |
Performance
| DirectX version |
11 |
| OpenGL version |
3.2 |
| Shader model version |
5.0 |
| PhysX |
Y |
| TV tuner integrated |
N |
| Full HD |
Y |
| HDCP |
Y |
Ports & interfaces
| DVI-D ports quantity |
1 |
| Interface type |
PCI Express 2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| HDMI |
Y |
| Mac compatibility |
N |

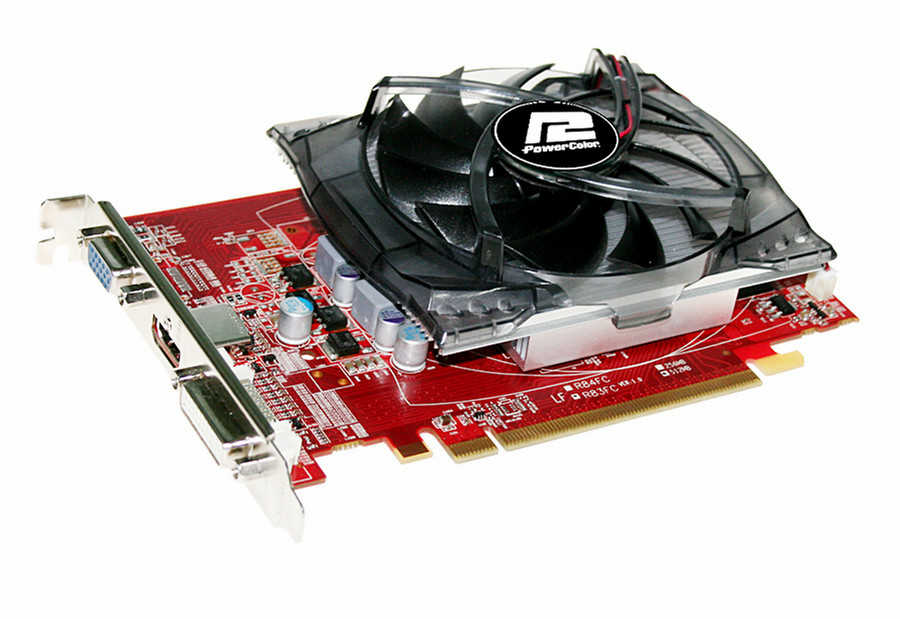

Radeon HD5670, 512 GDDR5, 128Bit, DirectX 11, HDMI, 2560 x 1600
- 627 million 40nm transistors;
- TeraScale 2 Unified Processing Architecture;
- 400 Stream Processing Units;
- 20 Texture Units;
- 32 Z/Stencil ROP Units;
- 8 Color ROP Units;
- GDDR5 memory interface;
- PCI Express 2.1 x16 bus interface;
- DirectX® 11 support;
- Shader Model 5.0;
- DirectCompute 11;
- Programmable hardware tessellation unit;
- Accelerated multi-threading;
- HDR texture compression;
- Order-independent transparency;
- OpenGL 3.2 support1;
- Image quality enhancement technology;
- Up to 24x multi-sample and super-sample anti-aliasing modes;
- Adaptive anti-aliasing;
- 16x angle independent anisotropic texture filtering;
- 128-bit floating point HDR rendering;
- ATI Stream acceleration technology;
- OpenCL Support1;
- DirectCompute 11;
- Accelerated video encoding, transcoding, and upscaling4,5;
- Native support for common video encoding instructions;
- ATI CrossFireX™ multi-GPU technology6;
- Dual GPU scaling;
- ATI Avivo HD Video & Display technology7;
- UVD 2 dedicated video playback accelerator;
- Advanced post-processing and scaling8;
- Dynamic contrast enhancement and color correction;
- Brighter whites processing (blue stretch);
- Independent video gamma control;
- Dynamic video range control;
- Support for H.264, VC-1, MPEG-2, and Adobe Flash9;
- Dual-stream 1080p playback support10,11;
- DXVA 1.0 & 2.0 support;
- Integrated dual-link DVI output with HDCP12;
- Max resolution: 2560x160013;
- Integrated HDMI 1.3 output with Deep Color, xvYCC wide gamut support, and high bit-rate audio;
- Max resolution: 1920x120013;
- Integrated VGA output;
- Max resolution: 2048x153613;
- Integrated HD audio controller;
- Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required;
- Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats;
- ATI PowerPlay™ power management technology7;
- Dynamic power management with low power idle state;
- Ultra-low power state support for multi-GPU configurations;
- Certified drivers for Windows 7, Windows Vista, and Windows XP.
