Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Switching capacity |
96 Gbit/s |
Other features
| Packet transfer speed |
1.488Mpps/port |
| Power LED |
Y |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Auto-sensing |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
Protocols
| Supported network protocols |
CSMA/CD, TCP/IP |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

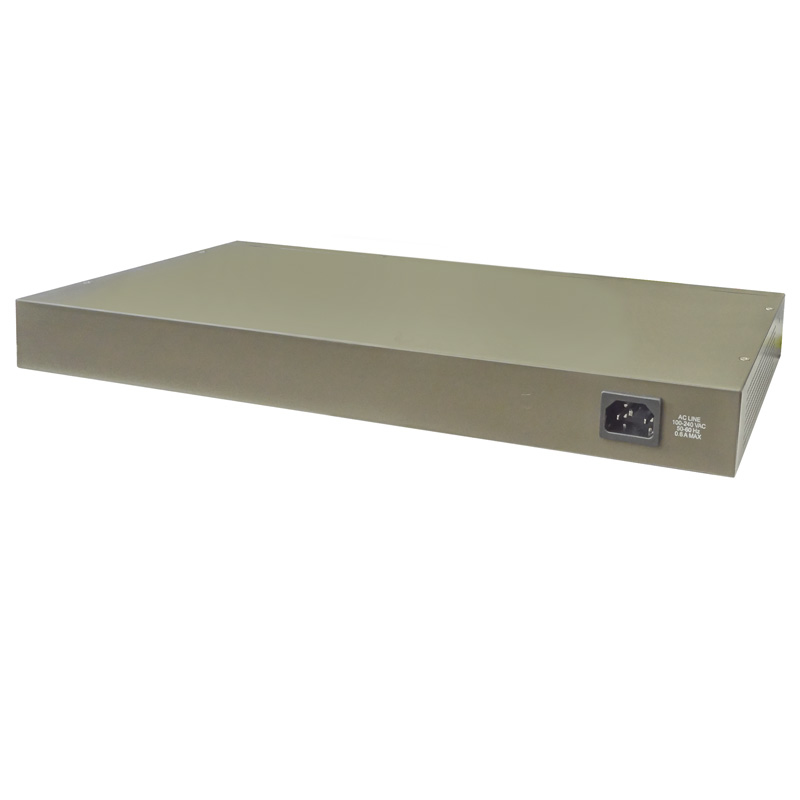

24 Port Gigabit 10/100/1000 Ethernet Rackmount Switch Hub
The PL-1024G 24-Port Gigabit desktop switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. The PL-1024G features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, it can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.
