Performance
| Antenna gain level (max) |
5 dBi |
| Frequency band |
2.4 - 2.5 GHz |
Features
| Maximum operating distance |
2000 m |
| Antenna connector type |
RP-SMA |

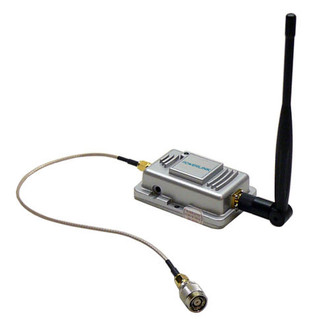

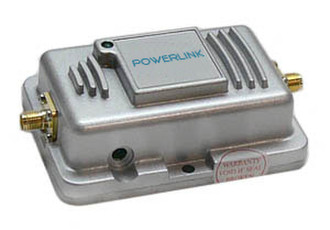

Amplus Indoor 1W/30dBm 802.11b/g/n Fixed-Gain Booster/Amplifier W/5dBi Antenna

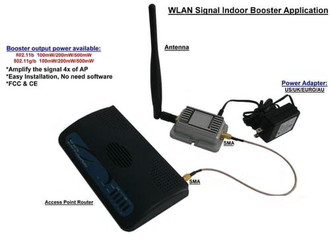

POWERLINK Amplus is an indoor solution 1W bi-directional Booster designed for 2.4GHz wireless LANs. This unit comes with an easy plug-and-play installation, which works together with an indoor Wireless Access Point to improve its operation range and performance.
POWERLINK Amplus is ideal for use with 2.4 GHz frequency hopping or direct sequence spread spectrum radio modems and 802.11b/g devices.
POWERLINK Amplus increases range by providing transmit gain as well as low-noise receive gain. This receive gain increases the receive sensitivity of wireless LAN Access Point. Full output power of 1W is achieved with only 5mW input into the Booster.
