Security
Firewall security |
NAT, SPI |
Authentication method |
802.1x |
MAC address filtering |
Y |
Ethernet LAN features
Cabling technology |
10/100Base-T(X) |
Ethernet LAN interface type |
Fast Ethernet |
Ethernet LAN data rates |
10, 100 Mbit/s |
Wireless LAN features
Top Wi-Fi standard |
IEEE 802.11n |
WLAN data transfer rate (max) |
300 Mbit/s |
Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Modulation |
16-QAM, 64-QAM, BPSK, CCK, DQPSK, DSSS, OFDM, QPSK |
Maximum outdoor range |
2000 m |
Other features
Internal memory |
16 MB |
Flash memory |
2 MB |
Rack mounting |
N |
Frequency band |
2.4 GHz |
Antenna
Antenna type |
external |
Antenna gain level (max) |
5 dBi |
Antennas quantity |
2 |
Detachable antenna(s) |
Y |
Power
Power over Ethernet (PoE) |
Y |
Performance
Firmware upgradeable |
Y |
Chipset |
Ralink RT3050F |
Additionally
Ethernet LAN connection |
Y |
AC adapter bundled |
Y |

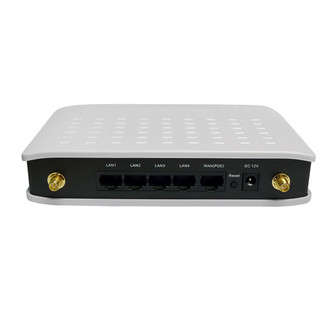

Ethernet LAN (RJ-45) ports quantity |
4 |
2-in-1 Combo (802.11b/g/n 150Mbps AP Router & 1W Amplifier/Booster), 2 x 5dBi, 2000m Max, Flash 2MB, 16MB SDRAM, PoE

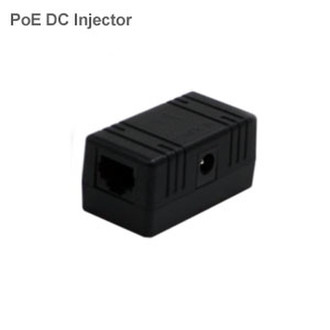

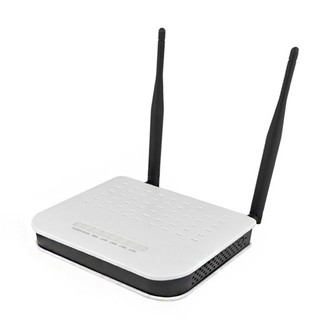

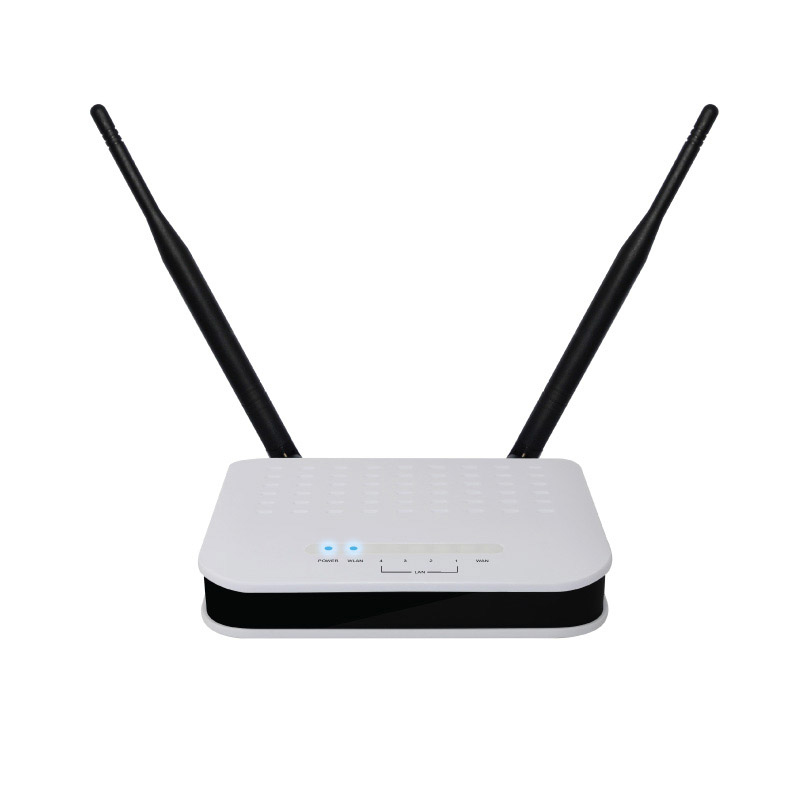

The WM-8707H High Power AP/Router w/built-in 4 LAN ports fully supports the features and functional compliance of IEEE 802.11b/g standard and 802.11n to provide high speed data transmission up to 150Mbps and increase signal strength and coverage range significantly. WM-8707H has 1W signal amplifier built-in, and getting connected for long distance is what WM-8707H high power router can offer while others can't. It also includes a PoE adapter which allow the Boost N to be installed 328ft away from a power outlet. You will never need an external WiFi signal booster/amplifier anymore.
