Technical details
| Output voltage |
5.5 mV |
| Azimuth |
Y |
| Operation |
Semi Automatic |
| Nominal speeds |
45, 33 RPM |
| Type |
Belt-drive audio turntable |
| Wow & flutter |
0.15% |
Power
| AC adapter input voltage |
100 - 110 V |
| AC adapter frequency |
50/60 Hz |
| Power supply type |
AC |
Weight & dimensions
| Platter diameter |
300 mm |
| Platter weight |
1600 g |
| Product dimensions (WxHxD) |
380 x 115 x 350 mm |

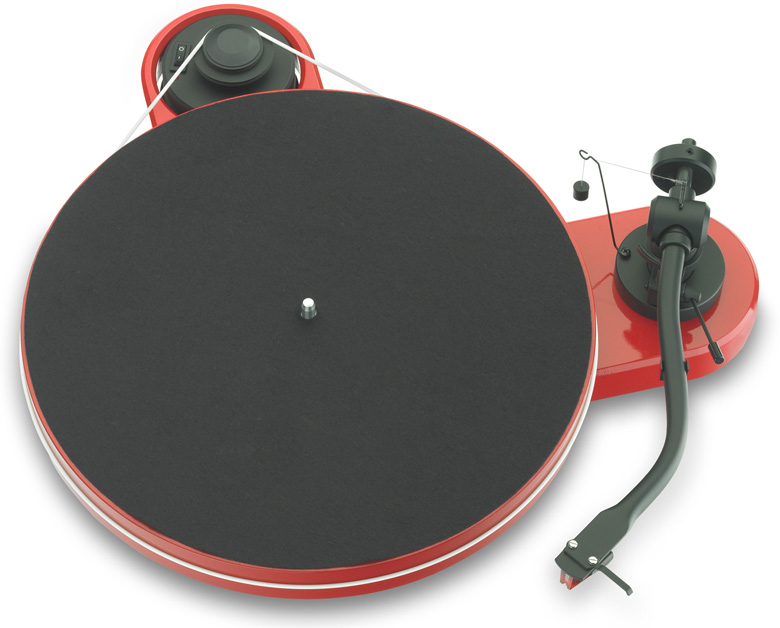

RPM 1.3 Genie, 33 / 45 r.p.m, 15 - 30mN, 12V/200mA AC, 2W
- Chassis available in matt black, glossy black, red and white
- A quiet running synchronous motor with a two-step pulley drives the platter's outside edge via a rubber belt.
- The drive motor is isolated on its own platform and completely decoupled from the plinth to eliminate vibration transmission.
- The resonance-optimised platter is made of medium density fibre.
- A inverted, chrome-plated stainless-steel axle runs on a polished metal ball in a sintered bronze bearing housing.
- Connection to the phono input of the amplifier can be made with connecting cables of your taste through the gold plated phono sockets and earth screw.
- External power supply avoids potential electro-mechanical interference.
- The turntable is supplied with Ortofon OM 3E or Ortofon 2M Red MM-cartridge fitted
- The headshell and armtube are fashioned from a single piece of aluminium.
- The horizontal bearings consist of two hardened stainless steel points and ballraces.
- Eccentrically mounted counterweight reduces cantilever forces and dynamic wow when playing warped records.
- Solid armbase permits accurate height adjustment of armtube and VTA (vertical tracing angle).
- The counterweight supplied is suitable for cartridges weighing between 4 - 9g
- Single-screw fixing of armtube allows rotation for easy adjustment of needle azimuth despite fixed headshell.
- The internal wiring consists of silver coated, high-purity copper.
