Other features
Mac compatibility |
N |
Speakers |
Y |
Rack mounting |
N |
Platform |
PC |
Chipset |
H61 |
Built-in microphone |
N |
USB connector type |
USB Type-A |
Case colour |
Black |
Power supply type |
ATX |
Built-in subwoofer |
N |
Internal mass storage |
HDD |
External drive bays |
4 |
Headphone connectivity |
3.5 mm |
Floppy drive installed |
N |
Graphics adapter family |
Intel |
HDMI |
N |
Audio system direct sound |
Y |
Number of speakers |
1 |
Ethernet interface type |
Gigabit Ethernet |
Processor manufacturer |
Intel |
Microphone connectivity |
3.5 mm |
USB ports quantity |
6 |
Audio system full duplex |
Y |
TV tuner integrated |
N |
Built-in camera |
N |
Networking
Wi-Fi |
N |
Bluetooth |
N |
Cabling technology |
10/100/1000Base-T(X) |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Processor special features
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel Identity Protection Technology version |
1.00 |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Supported instruction sets |
AVX |
Intel Rapid Storage Technology |
N |
Intel Fast Memory Access |
Y |
Intel Flex Memory Access |
Y |
Execute Disable Bit |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
N |
Processor package size |
37.5 mm |
Processor ARK ID |
53445 |
Intel® Quick Sync Video Technology |
Y |
Intel® Insider™ |
Y |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
Y |
CPU configuration (max) |
1 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
N |
Intel® Turbo Boost Technology |
Y |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Graphics
On-board graphics adapter dynamic frequency (max) |
1100 MHz |
On-board graphics adapter memory |
1 GB |
Number of displays supported (on-board graphics) |
2 |
On-board graphics adapter family |
Intel HD Graphics |
On-board graphics adapter |
Y |
On-board graphics adapter ID |
0x102 |
Discrete graphics adapter model |
Not available |
On-board graphics adapter base frequency |
850 MHz |
Processor
Tcase |
72.6 °C |
ECC supported by processor |
N |
Bus type |
DMI |
Memory bandwidth supported by processor (max) |
21 GB/s |
Maximum internal memory supported by processor |
32 GB |
Processor cache type |
Smart Cache |
Number of processors installed |
1 |
Processor boost frequency |
3.2 GHz |
Processor cache |
6 MB |
Processor lithography |
32 nm |
Thermal Design Power (TDP) |
95 W |
Maximum number of PCI Express lanes |
16 |
Processor codename |
Sandy Bridge |
Conflict Free processor |
N |
FSB Parity |
N |
CPU multiplier (bus/core ratio) |
29 |
Processor operating modes |
64-bit |
Processor cores |
4 |
Processor frequency |
2.9 GHz |
PCI Express slots version |
2.0 |
Design
Chassis type |
Tower |
Number of 5.25" bays |
4 |
Number of 3.5" bays |
4 |
Ports & interfaces
VGA (D-Sub) ports quantity |
1 |
DC-in jack |
N |
Parallel ports quantity |
1 |
DVI port |
Y |
SmartCard slot |
Y |
Serial ports quantity |
1 |
TV-out |
N |
PS/2 ports quantity |
2 |
Line-in |
Y |
Line-out |
Y |
Headphone outputs |
1 |
S/PDIF out port |
Y |
Microphone in |
Y |
Storage
Number of hard drives installed |
1 |
Hard drive size |
3.5 " |
Hard drive capacity |
500 GB |
Hard drive speed |
7200 RPM |
Compatible memory cards |
Not supported |
Total storage capacity |
500 GB |
Card reader integrated |
N |
Hard drive interface |
Serial ATA |
Memory
Internal memory type |
DDR3-SDRAM |
Maximum internal memory |
16.384 GB |
Internal memory |
4 GB |
Packaging content
Windows keys |
Y |
Display included |
N |
Keyboard supplied |
Y |
Numeric keypad |
Y |
Handheld remote control |
N |
Mouse included |
Y |
Performance
Motherboard form factor |
ATX |
Audio output channels |
7.1 channels |
Audio system |
HD |
Software
Operating system architecture |
64-bit |
Expansion slots
PCI Express x1 slots |
3 |
PCI Express x16 slots |
1 |
Optical drive
Optical drive type |
DVD±RW |
Additionally
Intel AES New Instructions |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |
System bus data transfer rate |
5 GT/s |
Fibre Channel |
N |
InTru™ 3D Technology |
Y |
Chipset |
Intel H61 |
Ethernet LAN connection |
Y |

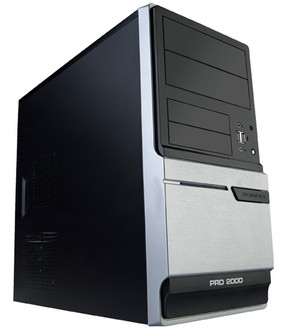

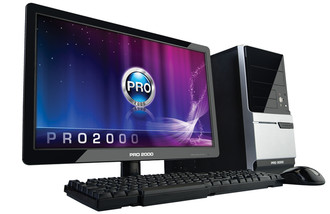

Pro2000 PROB6050. Processor frequency: 2.9 GHz, Processor family: 2nd gen Intel® Core™ i5, Processor model: i5-2310. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 16.384 GB. Total storage capacity: 500 GB, Hard drive capacity: 500 GB, Hard drive interface: Serial ATA. Optical drive type: DVD±RW. On-board graphics adapter model: Intel HD Graphics 2000, On-board graphics adapter family: Intel® HD Graphics, On-board graphics adapter memory: 1 GB
