Graphics
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
850 MHz |
| On-board graphics adapter dynamic frequency (max) |
1100 MHz |
| On-board graphics adapter memory |
1 GB |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter family |
Intel HD Graphics |
Processor
| Processor cache |
3 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Sandy Bridge |
| Processor cache type |
Smart Cache |
| Memory clock speeds supported by processor |
1066 MHz |
| Memory channels supported by processor |
Dual |
| CPU multiplier (bus/core ratio) |
29 |
| Processor operating modes |
64-bit |
| Memory bandwidth supported by processor (max) |
17 GB/s |
| Stepping |
Q0 |
| Processor cores |
2 |
| Processor frequency |
2.9 GHz |
| Tcase |
69.1 °C |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Maximum internal memory supported by processor |
32 GB |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.1, SSE4.2 |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
69116 |
| Processor code |
SR0RS |
Expansion slots
| PCI Express x1 slots |
2 |
| PCI Express x16 slots |
1 |
Performance
| Audio output channels |
7.1 channels |
| Audio system |
HD |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| TV-out |
N |
| PS/2 ports quantity |
2 |
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
N |
| SmartCard slot |
N |
| DC-in jack |
N |
Packaging content
| Drivers included |
Y |
| Keyboard supplied |
Y |
| Keyboard layout |
QWERTY |
| Numeric keypad |
Y |
| Mouse included |
Y |
| Windows keys |
Y |
| Display included |
N |
Optical drive
| Optical drives quantity |
1 |
| Optical drive type |
DVD Super Multi DL |
| LightScribe |
N |
Networking
| Internal modem |
N |
| Wi-Fi |
N |
| Bluetooth |
N |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
N |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA II |
| Number of hard drives installed |
1 |
| Hard drive size |
3.5 " |
Certificates
| Blue Angel certified |
N |
| Energy Star certified |
N |
Other features
| Number of hard drives supported |
4 |
| Cooling type |
Active |
| BIOS password |
Y |
Design
| Chassis type |
Micro Tower |
| Number of 5.25" bays |
2 |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel H61 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |

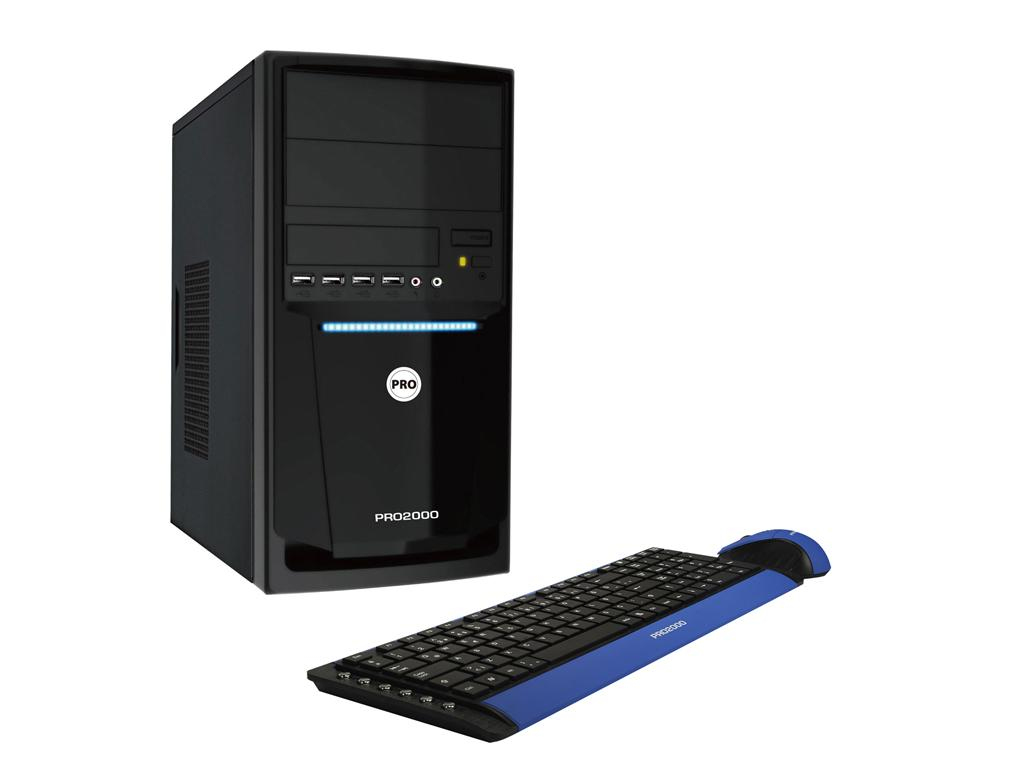

Pro2000 PROG225. Processor frequency: 2.9 GHz, Processor family: Intel® Pentium®, Processor model: G645. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 16 GB. Storage media: HDD, Hard drive capacity: 500 GB, Hard drive interface: Serial ATA II. Optical drive type: DVD Super Multi DL. On-board graphics adapter model: Intel® HD Graphics, On-board graphics adapter family: Intel® HD Graphics, On-board graphics adapter memory: 1 GB
