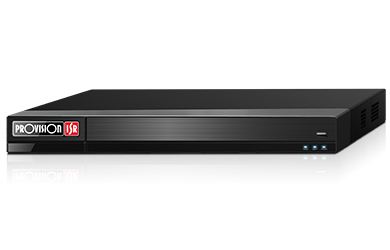

Provision-ISR NVR5-16400(1U)

Provision-ISR NVR5-16400(1U)

MPN: NVR5-16400(1U)
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Storage

Number of hard drives installed 2
Hard drive capacity 6000 GB
Total installed storage capacity 12000 GB
Hard drive interface Serial ATA

Packaging content

Handheld remote control Y

System requirements

Browser supported IE, Safari, Firefox (Mac OS, Windows Vista/7/8/10)
Mobile operating systems supported iOS, Android
Mac operating systems supported Y

Ports & interfaces

BNC audio input Y
BNC audio output Y
VGA (D-Sub) output ports 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 1

Performance

Supported network protocols TCP/IP, DHCP, DDNS, NTP, SMTP, P2P, RTSP
Backup function Y
PTZ control (Pan/Tilt/Zoom) Y
Analog signal format system PAL, NTSC
Video input channels 16
Ethernet LAN data rates 10, 100, 1000 Mbit/s

Features

Rack mounting Y

Additionally

On/Off switch Y
Выход HDMI Y
Ethernet LAN (RJ-45) ports quantity 1
1U, 16CH, HDMI (4K, 1080P), VGA (1280x1024), H.265 / H.264, 2 x USB, Gigabit Ethernet, 12TB HDD <b>Vdeo:</b>
Input: 16 Channel via Standard network connection (1 x RJ-45 Network Port)
Output: VGA: 1280x1024
HDMI: 1920x1080 (1080P), 3840x2160 (4K)

<b>Bandwidth:</b>
Incoming: 160Mbps
Outgoing: 160Mbps

<b>Decoding Support:</b>
H.265
H.264

<b>Recording:</b>
Real-Time 16CH 5MP
FPS: 400 (PAL) / 480 (NTSC)
Resolution: 2592x1944

<b>Playback:</b>
16 Channels Simultaneously

<b>Audio:</b>
Input: 1 Channel on device (RCA) + IP Camera inputs
Output: 1 Channel on device (RCA)
2 Way audio

<b>Alarm:</b>
Input: IP Camera inputs only
Output: IP Camera outputs only

<b>Storage:</b>
2 x SATA (Up to 6TB Each)

<b>USB Port:</b>
1 x USB2.0
1 x USB3.0

<b>Network:</b>
RJ-45: 1000Mbps
