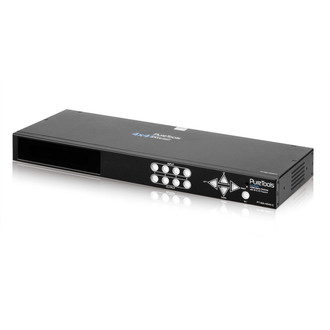

PureLink PT-MA-HD44-C video switch

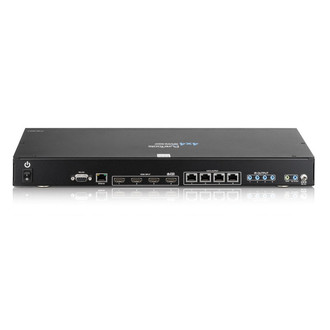

4 x 4 HDMI Matrix Switcher over Single Cat.X, Full 3D, 4 x HDMI, 1 x RS-232, 1 x IR In, 1 x RJ-45 Ethernet, 4 x RJ‐45 Out, 5 x IR Out The 4x4 HDMI Matrix Switcher over Single Cat.X PT-MA-HD44-C with full 3D support provides a flexible and cost effective solution to route HD video content as well as multi-channel digital audio (up to 7.1-channel) from each of the four HDMI sources at the same time up to four HDMI sinks. The included single Cat.X receiver modules enable a signal transmission of up to 60.0m over a single Cat.X cable.

The up to eight level controllable signal amplification on receiver side ensures an optimum signal level adjustment for different transmission distances.

The default HDMI EDID function allows to learn the EDID of the display, thus ensuring faster switching times and a more reliable and redundant transmission.

Without any additional setup or programming, it is possible to use the system as a plug-and-play solution and allows simultaneous digital and uncompressed transmission of the signals.
