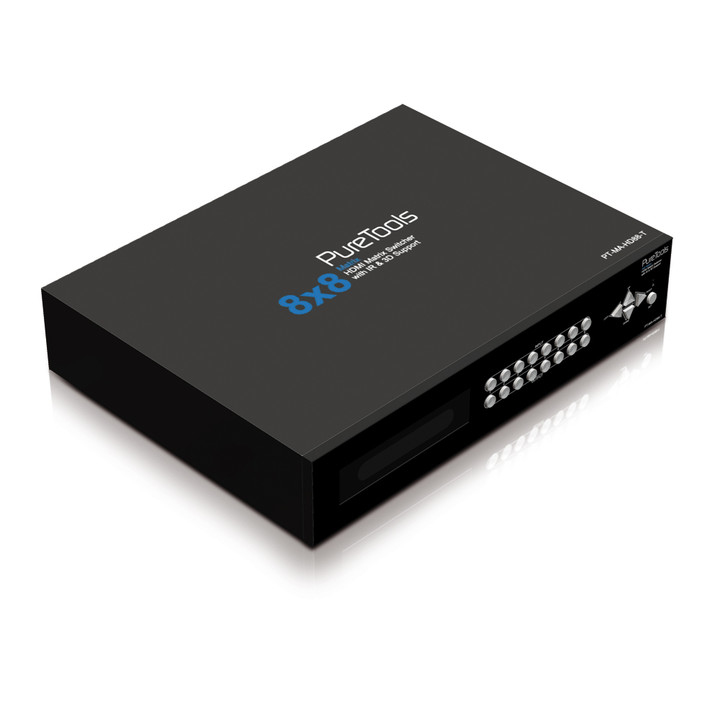

PureLink PT-MA-HD88-T video switch

8x8 HDMI Matrix Switcher, Full 3D, 1920x1200, 8 x HDMI In, 8 x HDMI Out, 8 x RJ-45, IR, RS-232, PoE The 8x8 HDMI Matrix Switcher over HDBaseT PT-MA-HD88-T with full 3D support provides a flexible and cost effective solution to route HD video content as well as multi-channel digital audio (up to 7.1 channels) of each of the eight HDMI sources up to eight HDMI sinks at the same time.

The Matrix Switcher has eight HDMI inputs and eight HDMI outputs via CatX with HDBaseT technology for transmission distances of up to 100m at a resolution of 1080p (1920x1080)

Necessary receivers for signal transmission via HDMI HDBaseT are included.

The up to eight levels controllable signal amplification at the receiver modules ensures optimum signal level adjustment for different transmission distances.

The default HDMI EDID learning function allows learning the EDID of the display, thus ensuring faster switching times and a reliable and redundant transmission.

Without additional setup or programming, it is possible to use the system as a plug-and-play solution and allows for simultaneous digital and uncompressed transmission of the following signals.
