Microphone
| RF power |
40 mW |
| Type |
Stage/performance microphone |
Ports & interfaces
| Operating frequency |
480 - 560 MHz |
| Maximum operating distance |
80 m |
| Frequency stability |
0.005% |
Receiver
| Signal-to-Noise Ratio (SNR) |
80 dB |
| Dynamic range |
80 dB |
| Receiver included |
Y |
Power
| Power supply type |
DC |
| Power consumption |
400 mA |
| Operating voltage |
15 V |
Technical details
| Frequency range |
80 - 12500 Hz |
Additionally
| On/Off switch |
Y |
| Wireless technologies |
Wireless |

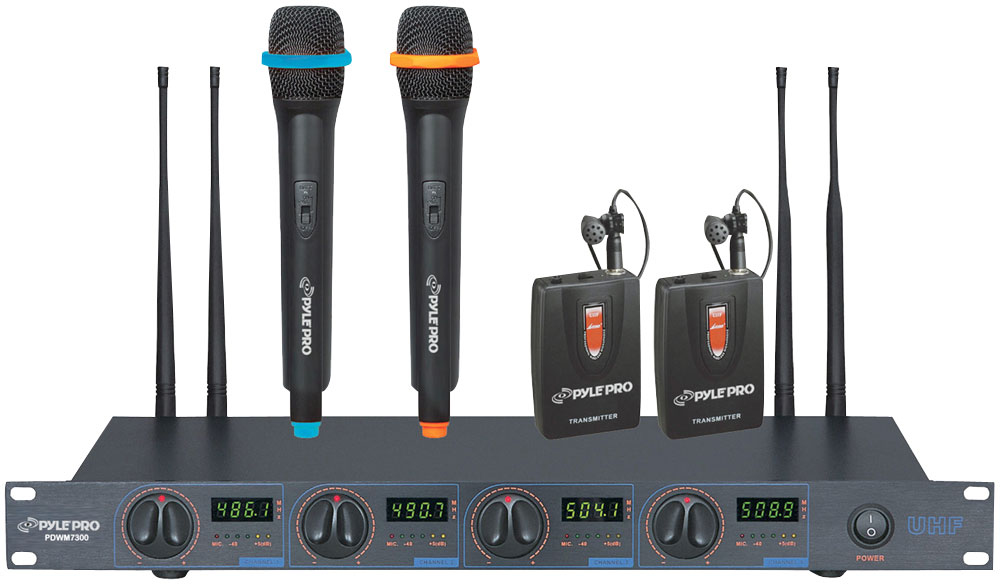

PDWM7300 - Rack Mount Professional 4 Mic Wireless UHF Microphone System With 2 Lavalier and 2 Handheld Microphone
This rack-mount wireless microphone system includes 2 handheld microphones and 2 Lavalier microphones -- perfect for large events with multiple vocalists. The receiver is equipped with foldable antennas, independent volume control for each microphone, and an LCD display showing the frequency of each microphone. The microphones are color coded for easy identification and operate at up to 260 ft. Each mic is powered by 2 x AA batteries.
<b>Receiver</b>
- Rack mountable UHF system is perfect for large Events
- Foldable antennas
- Independent volume control for each microphone
- LCD display shows frequency of each microphone
- Frequency Range: 480-560Mhz
- Sensitivity: <2UV (12dB SINAD)
- Dynamic Range: >80dB
- Signal-to-Noise: >80 dB
- Image Rejection: >70dB
- Audio Frequency Response: 80-12500HZ
- System Distortion: <1%
- Audio Output Level: 700mV(600O)
- Power supply: DC15V~17V/800MA
- Current Consumption: < 400mA
<b>Microphones</b>
- Set includes 2 color coded hand microphones and 2 Lavalier belt-clip mics
- On/off switch for simple operation
- Ergonomic design fits the hand perfectly
- Maximum Deviation Range: 55 KHz (Max)
- Frequency Stability: ±0.005%
- RF Output Power: <40mW
- RF Rejection: >40dB
- Current Consumption: <100mA
- Operate Range: 160 – 260 ft.
- Battery: 1.5V*2 AA
- Sold as : Unit
