Technical details
| Apple docking compatibility |
iPhone, iPad |
| USB powered |
Y |
| DJ mixer |
Y |
| Video capability |
N |
Audio
| Channels quantity |
8 |
| Frequency range |
10 - 200000 Hz |
Outputs
| Total Harmonic Distortion (THD) |
0.005% |

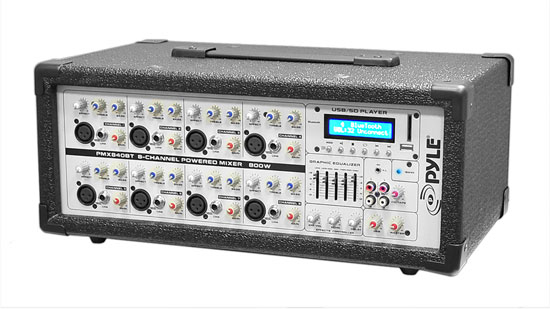

8- Channel 800 Watt Bluetooth Mixer with Balanced Mic and Line Inputs, USB and SD Card Readers
- Bluetooth Wireless Music Streaming
- Works with Virtually Any Bluetooth Enabled Device
- (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
- Digital LCD Display & Front Facing Control Center
- USB Flash Drive & SD Memory Card Readers
- 3-Pin Low Impedance Balanced Microphone Inputs
- 1/4” Line/ High Impedance Balanced Inputs
- Independent Channel Volume, EQ & EFFX Controls
- Master 5 Band Graphic Equalizer
- EQ & Master EFFX Control of Level, Echo & Reverb Controls
- Aux (3.5mm) Input Jack for Connecting External Devices
- Headphone Output: 1/4” TRS Stereo Connector
- RCA & 1/4” Effects Loop Connectors
- Additional RCA Inputs: Tape Play (L/R), Tape Record (L/R)
- Technical Specs:
- 800 Watt Output Power
- 8 Ohm Impedance Each Channel
- Line Level Impedance 10K Ohms @ -10dBv
- Mono Microphone Inputs (XENYX Mic Pre-Amp)
- XLR: Electronically Balanced Discrete Input Circuit
- Frequency Response: <10Hz – 150kHz (-1dB), <10Hz – 200kHz (-3dB)
- Gain Range: +10 - +60dB
- Max. Input Level: +12dBu @ +10dB Gain
- Impedance: Approx. 2.6k Ω Balanced
- Signal-to-Noise Ratio: 110dB / 112dBA – Weighted
- Distortion: (THD+N): 0.005% / 0.004% A- Weighted
- Channel Equalization: Control Range
- High @ 10K +/-15dB, Low @ 60K +/-15dB
- Master EQ Frequency Hz: 60, 250, 1K, 4K, 12K
- Boost/Cut Control: +/-12dB
- Effects Loop & Send: 1/4” TS Connectors Unbalanced
- Impedance: Approx 1k Ohm -10dBv
- Sold as : Unit
- Weight :21.8 lbs.
