Ports & interfaces
| BNC output ports |
1 |
| RS-485 ports |
1 |
| BNC input ports |
16 |
| VGA (D-Sub) output ports |
1 |
Hard drive
| Hard drive capacity |
1024 GB |
| Number of hard drives supported |
1 |
| Maximum hard drive capacity |
2048 GB |
| Hard drive interface |
Serial ATA |
Video
| Playback resolutions supported |
800x600, 1024x768, 1280x1024, 1366x768, 1440x900 |
| Display frame rate |
30 fps |
| Video capturing speed |
30 fps |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

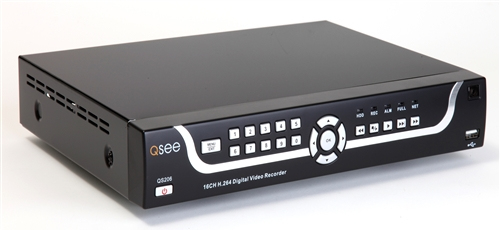

QS206 - 16 Channel, H.264, 30fps, VGA, 2xUSB, Ethernet, 1TB HDD
<b>Q-See QS206 - 16 Channel H.264 Network DVR CIF Real Time Recording with VGA port with 1 TB</b>
This 16 channel DVR provides you peace of mind by allowing you to remotely monitor your premises over the Internet, or even on Windows Mobile Pro, Symbian, iPhone, Android, and some Blackberry enabled 3G phones. Watch live video or playback video, and even access DVR menus from virtually anywhere in the world. With the sophisticated user interface, you can plug in your USB mouse (included) to easily navigate through the program menus. H.264 compression allows you to maximize your hard drive recording time, and delivers good digital video quality when viewing over the Internet or 3G mobile networks.
Q-See`s Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR can support up to 16 cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely worldwide
