Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| BNC output ports |
2 |
| RS-485 ports |
1 |
| BNC input ports |
16 |
Hard drive
| Hard drive interface |
Serial ATA |
| Maximum hard drive capacity |
2048 GB |
Video
| Display frame rate |
30 fps |
| Video capturing speed |
480 fps |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

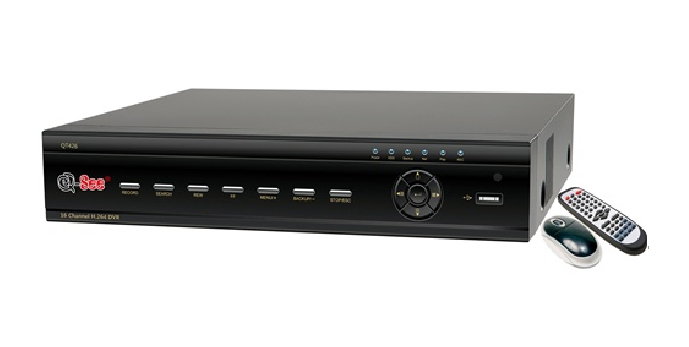

16-Channel, 1280 x 1024, 30fps, H.264, 1 x VGA Out, 16 x BNC In, 2 x BNC Out, 4 x RCA Audio In, 1 x RCA Audio Out, 2 x USB 2.0, RS-485, Black
Quality you can see and experience at an affordable price. This 16 channel DVR features real time CIF recording, or D1 recording at a lower frame rate, remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro and Symbian OS, iPhones, ipads, Android, and Blackberry on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on to a hard drive. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss.
Q-Sees Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR supports up to 16 cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely Worldwide.
MAC OS 10.6/10.7 Compatible!
