Data transmission
| MAC address table |
32000 entries |
| Switching capacity |
176 Gbit/s |
| Throughput |
131 Mpps |
Performance
| Memory type |
DDR3 |
| Internal memory |
1024 MB |
| Firmware upgradeable |
Y |
| Built-in processor |
Y |
| Flash memory |
64 MB |
Design
| Housing material |
Metal |
| Safety |
UL, cUL, CB, BSMI, CCC |
| Ventilation fan(s) |
4 |
| LED indicators |
Y |
| Certification |
RoHS |
| Electromagnetic compatibility |
CE, FCC, VCCI, MSIP, BSMI, CCC, RCM, Anatel |
| Form factor |
1U |
| Rack mounting |
Y |
Power
| Power consumption (typical) |
95 W |
| Redundant power supply (RPS) support |
Y |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
Management features
| Switch layer |
L2/L3 |
| Web-based management |
Y |
Ports & interfaces
| Console port |
RJ-45 |
| Installed SFP+ modules quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| USB 2.0 ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10GBASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
48 |
Networking
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support |
Y |
Protocols
| Management protocols |
SNMP |
Weight & dimensions
| Depth |
393 mm |
| Weight |
7150 g |
| Width |
435 mm |
| Height |
42.8 mm |
Additionally
| Colour of product |
Black |
| Operating temperature range (T-T) |
0 - 45 °C |

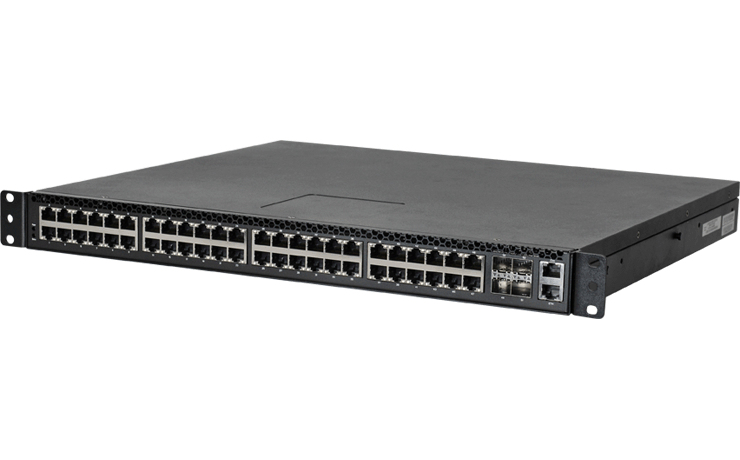

1G/10G Datacenter & Enterprise-Class Ethernet switch, 48 x RJ-45, 4 x SFP+, 1U, F-2-B, AC
Datacenter networks are facing a major paradigm shift toward the disaggregation of software and hardware. This move, combined with the benefits of software-defined networking (SDN) allows network administrators respond quickly to changing business requirements at a lower capital cost as well as reducing the network operations complexity.
QuantaMesh BMS products offer higher performance, increased availability, low latency and better serviceability. QuantaMesh T1048-LB9 supports 48 10Base-T/100Base-TX/1000Base-T ports and 4 dual speed 1/10GbE SFP+ ports in a compact 1U size. By leveraging merchant silicon chips, T1048-LB9 is a high performance high density Ethernet switch with an affordable price for the deployment of data center infrastructure. With ONIE (Open Network Installation Environment) pre-loaded on QuantaMesh BMS switches, it provides the flexibility and allows choice of network operating system supported by ONIE installer. This provides agile installation process and faster response for the changing business demand.
