Data transmission
| Switching capacity |
1440 Gbit/s |
| Throughput |
1071 Mpps |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Installed QSFP+ modules quantity |
6 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T, 1000BASE-T |
| Console port |
RJ-45 |
| Gigabit Ethernet (copper) ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Protocols
| Management protocols |
SNMP, Telnet |
Design
| Safety |
UL, cUL, CB, BSMI, CCC |
| Ventilation fan(s) |
3 |
| Electromagnetic compatibility |
CE, FCC, VCCI, CCC, RCM |
| Form factor |
1U |
| Rack mounting |
Y |
Networking
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
Y |
| Cable types supported |
Cat5e, Cat6a, Fiber |
48 x 1000/10GBASE-T RJ-45, 6 x QSFP+, USB, B-2-F, AC, Rangeley
A Powerful 10GBASE-T Top-of-Rack Switch for Data Center and Cloud Computing
Datacenter networks is facing a major paradigm shift toward the disaggregation of software and hardware. This move, combined with the benefits of software-defined networking (SDN) allows network administrators respond quickly to changing business requirements at a lower capital cost as well as reducing the network operations complexity.

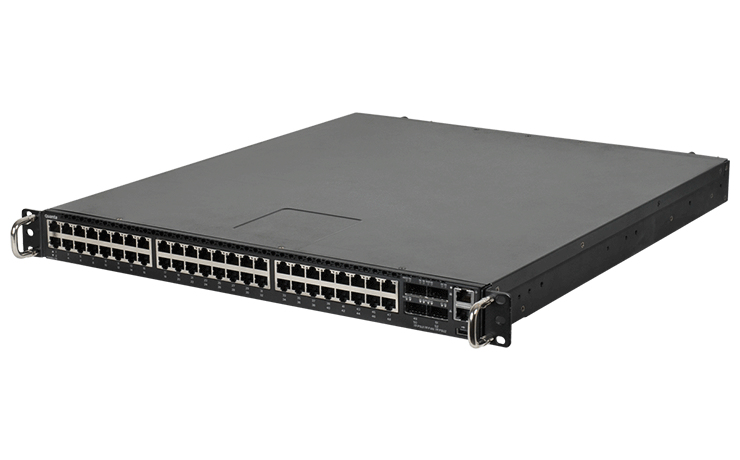

QuantaMesh BMS products offer higher performance, increased availability, and better serviceability to meet datacenter installation environment. QuantaMesh T3048-LY9 supports 48 100/1000/10GBase-T ports and 6 40G QSFP+ ports in a compact rack unit size. By levering the new generation merchant silicon chips, T3048-LY9 is a high performance high density Ethernet switch with an affordable price for the deployment of data center infrastructure. Moreover, the CPU board design of T3048-LY9 provides option for 3rd party software choose. Finally, with ONIE (Open Network Installation Environment) pre-loaded, it provides the flexibility and allows choice of network operating system supported by different software vendors. This provides agile installation process and faster response for the changing business demand.
