Performance
| Processor frequency |
266 MHz |
Other features
| Ports quantity |
1 |
| Data link protocols |
FCP, IP, FC-TAPE |
| Form factor |
169.3x51.5 mm |
| Maximum operating distance |
500 m |
| Data transfer rate |
4000 Mbit/s |

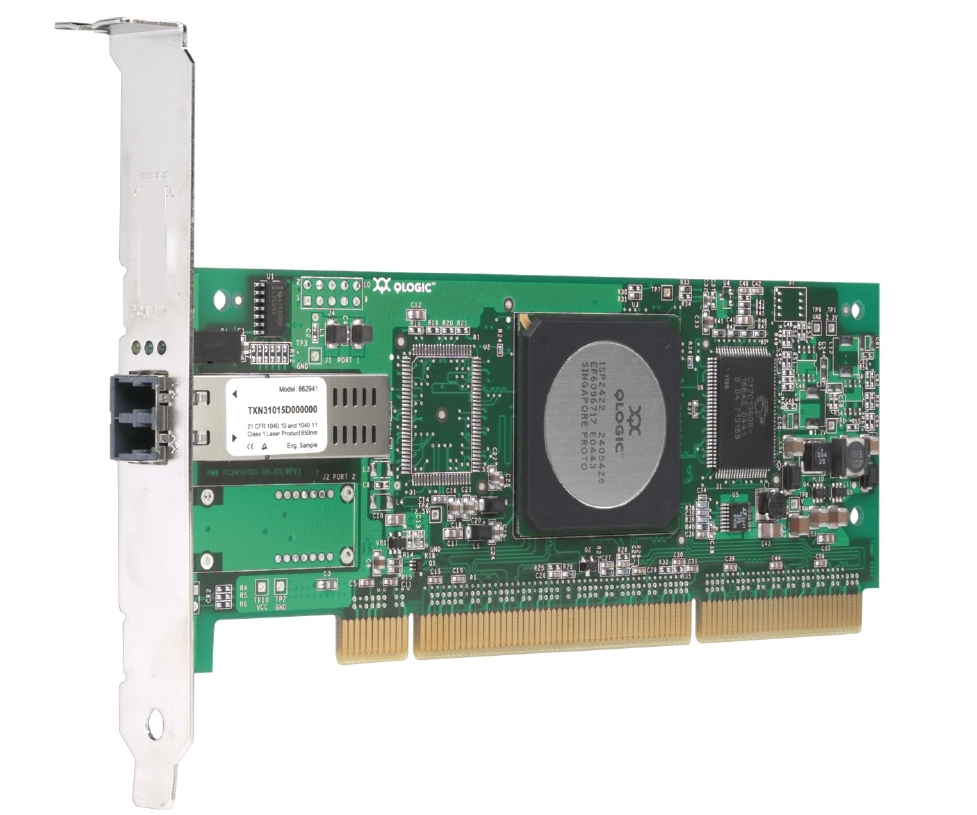

4-Gbps single port Fibre Channel to PCI-X 2.0 266 MHz host bus adapter multi-mode optic
Performance
-100,000 IOPS delivers high I/O transfer rates for storage applications.
-64-bit, PCI-X 2.0 266-MHz dual data rate (DDR) bus for high throughput applications.
Scalability
-Multi-ID and N_Port virtualization ready. Allows physical ports to be part of multiple logical networks.
-Comprehensive operating system (OS) driver support including Windows®, Linux™, Solaris™, and Mac OS®.
Reliability
-Overlapping protection domains for continuous protection of internal data paths.
-T10 cyclic redundancy check (CRC) ensures end-to-end data integrity across storage area networks (SANs).
-Three LEDs display real-time status and link activity information.
