Design
| Fan diameter |
60 mm |
| Rack mounting |
Y |
Storage
| Number of storage drives supported |
12 |
| Card reader integrated |
N |
| Maximum capacity |
12 TB |
2 x SAS 6 Gbps, 12 x 2.5"/3.5" SAS/SATA 6 Gbps, COM, 44.1 dB, 600 W, 14800 g, Black, 2U
<b>SAS/SATA/SSD RAID Expansion Enclosure for Turbo NAS</b>
- Up to 8 expansion enclosures with Max.96 HDDs supported.
- 48TB per expansion enclosure with Max. 384TB raw capacity.
- 24Gbps SAS connection.
<b>Flexible storage scalability for Turbo NAS. Simple & reliable.</b>

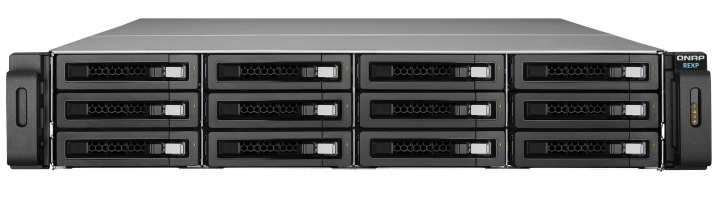

The QNAP REXP-1200U-RP expansion enclosure is designed for expanding the storage space on the Turbo NAS and can support maximum 384TB raw capacity by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.
- Plug and use, seamless capacity expansion.
- Missing mode protection.
- High density, high efficiency and high scalability.
- Flexibly manage storage with the QTS Storage Manger.
- Supports SAS/SATA 6Gbps hard drives and SSD.
- Backup storage for the Turbo NAS.
<b>Plug and use, seamless capacity expansion</b>
Simply connect a REXP-1200U-RP to a Turbo NAS and power it on. The Turbo NAS will detect the hard drives in the REXP-1200U-RP as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager.
<b>Missing mode protection</b>
When the disconnection of a RAID expansion enclosure is detected, the Turbo NAS blocks IO access to protect data. The system can recover from the missing mode to the normal state with data staying intact.
<b>High density, high efficiency and high scalability</b>
The REXP-1200U-RP supports 12 hard drives and 48TB raw capacity in 2U rack space. The REXP-1200U-RP has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain respectively. Each SAS wide port combines four SAS channels(maximum 8 SAS channels supported per expansion enclosure), with each supporting 6Gbps full duplex speed. The solution delivers unprecedented performance of up to 24Gbps per host connection.
<b>Powerful QTS Storage Manager</b>
The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical interface, which simplifies the process of NAS capacity expansion and REXP-1200U-RP management. IT administrators can easily monitor the health status of REXP-1200U-RP and disks in it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.
<b>An excellent backup solution for the Turbo NAS</b>
In addition to expanding an existing volume, IT administrator can use the REXP-1200U-RP as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrator back up the Turbo NAS data to the REXP-1200U-RP on a real time or scheduled basis.
<b>Flexible drive type and capacity</b>
The REXP-1200U-RP offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS hard drives with high performance and high reliability for mission critical application, low-cost but high-capacity SATA hard drives for large data archiving, or high-speed and high stability SSD for I/O intensive operations. Just make the best use of each drive.
