Networking
| Cabling technology |
10/100/1000BASE-T(X) |
| DHCP client |
Y |
| DHCP server |
Y |
| Wi-Fi |
N |
Processor
| Number of processors installed |
1 |
| Processor frequency |
0.5 GHz |
Performance
| Noise level |
42 dB |
| Reset button |
Y |
| Buzzer |
Y |
Power
| Power consumption (sleep) |
14.8 W |
Storage
| Number of storage drives supported |
2 |
Other features
| Networking features |
Gigabit Ethernet |
Design
| Chassis type |
Desktop |
| Number of fans |
1 |
Additionally
| Internal RAM type |
DDR2 |
| Internal RAM |
0.125 GB |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
1000 Mbit/s |

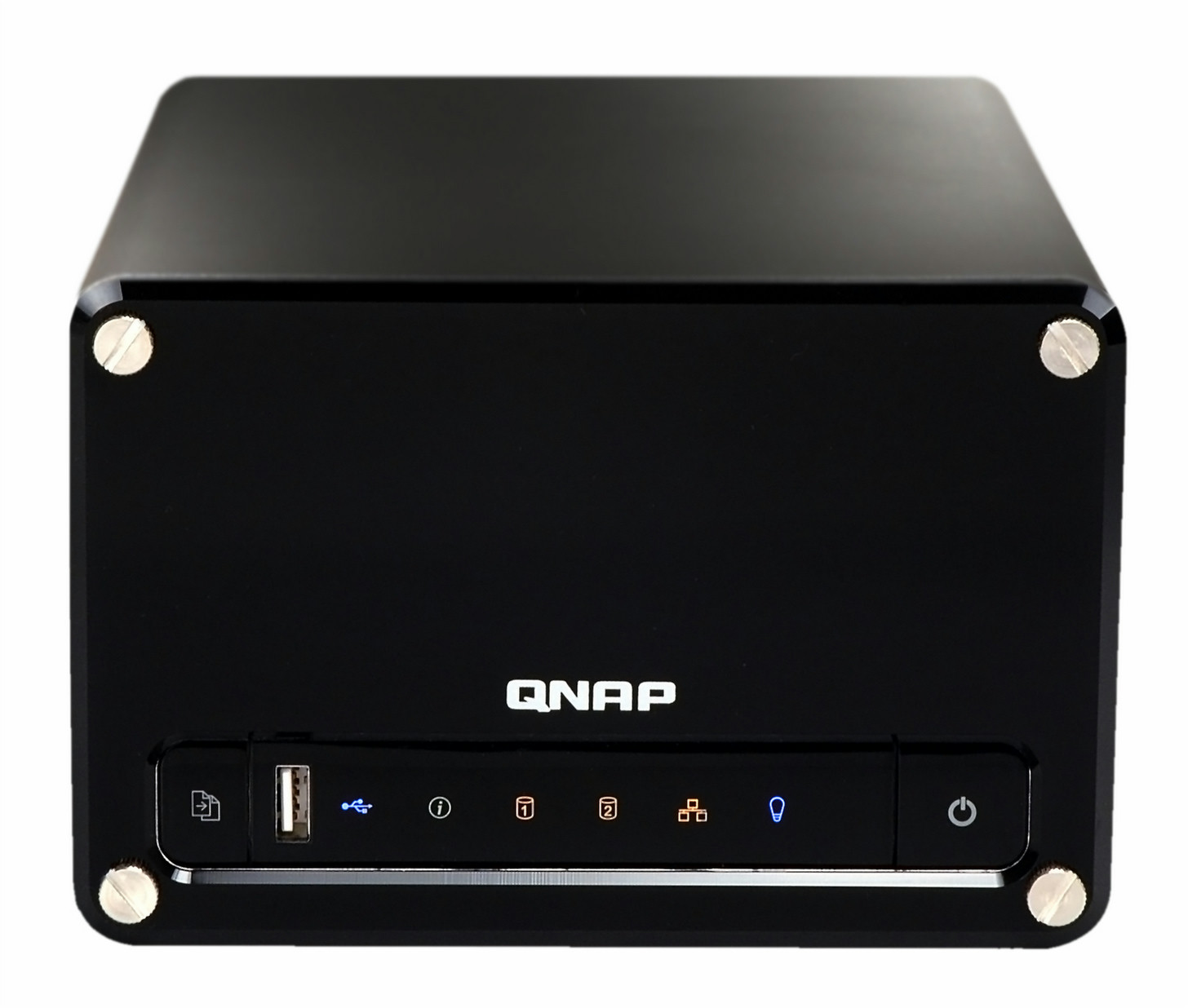

TS-209 Pro, SoC 500 MHz, 128MB DDR2, 8.89 cm (3.5 ") , SATA2, Gigabit Ethernet
Modern business needs a reliable network storage system for centralized file sharing, network printer sharing, FTP upload/download, and data backup, etc. To store, back up, manage, and share these digital assets and outputs appropriately have become increasingly essential. However, it is a challenging job for most small business and SOHO users due to the lack of resources and professional IT staff. Now, QNAP TS-209 Pro Turbo NAS offers the most ideal solution to accomplish all these needs.
QNAP TS-209 Pro Turbo NAS is a 2-bay, hot-swappable All-in-one NAS (Network Attached Storage) Server supporting up to 2TB storage capacity and abundant valuable server functions. Adopting the latest powerful 500MHz CPU with 128MB DDR II RAM and Gigabit Ethernet design, TS-209 Pro's ultra-high-speed performance significantly boosts the file sharing speed and makes it a perfect choice for business users who need faster performance and useful server features. With the friendly web-based interface, users can easily set up a network system for all sorts of server applications without MIS help.
TS-209 Pro supports multiple file sharing protocols for business users to share files across Linux, Unix, Mac, and Windows platforms. Many valuable server functions including File Server, FTP Server, and Printer Server, etc., are supported to satisfy the business needs. Meanwhile, Windows ADS (Active Directory Service) is supported to help create an easy-to-access environment and lower the maintenance cost by centralized management. With the dual support of MySQL and SQLite, SMB & SOHO users can easily set up their own web and database servers flexibly.
Advanced RAID-1 mirroring with hot-swapping design, which is unique in 2-bay storage in the market, provides enterprise-class data protection and non-stop service. In case of drive failure, the hard disk drive can be replaced immediately without turning off the server and the data can be rebuilt by RAID auto-rebuilding.
TS-209 Pro provides the most complete backup solution for secure data protection with the professional backup software: NetBak Replicator. Users can select Auto-Sync/ Instant/ Schedule backup modes to back up the data on multiple Window PCs. The encrypted Remote Replication and RAID 1 disk mirroring ensures exclusive data protection.
TS-209 Pro supports various security mechanisms for data storage and management. The FTP Server enables data transfer and sharing over SSL/ TLS (explicit) encryption. The server can be accessed by remote login by SSH connection and browser-based SSL login. Users can access, store and share data securely.
