Other features
| Connectivity LEDs |
USB, Status, HDD 1, HDD 2, HDD 3, HDD 4, LAN |
| Fan |
4 cm, 12V DC |
| Networking features |
Gigabit Ethernet |
Processor
| Number of processors installed |
1 |
| Processor frequency |
0.8 GHz |
Performance
| Pre-installed software |
Linux |
| Multilingual support |
Y |
| Reset button |
Y |
Networking
| iSCSI support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Power
| Power consumption (sleep) |
14 W |
| Power supply unit (PSU) capacity |
250 W |
| Output power |
250 W |
Storage
| Hot-swap drive bays |
Y |
| Number of storage drives supported |
4 |
Ports & interfaces
| eSATA ports quantity |
2 |
| eSATA |
Y |
Additionally
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Internal RAM |
0.5 GB |
| Transfer rate (Mbps) |
1000 Mbit/s |

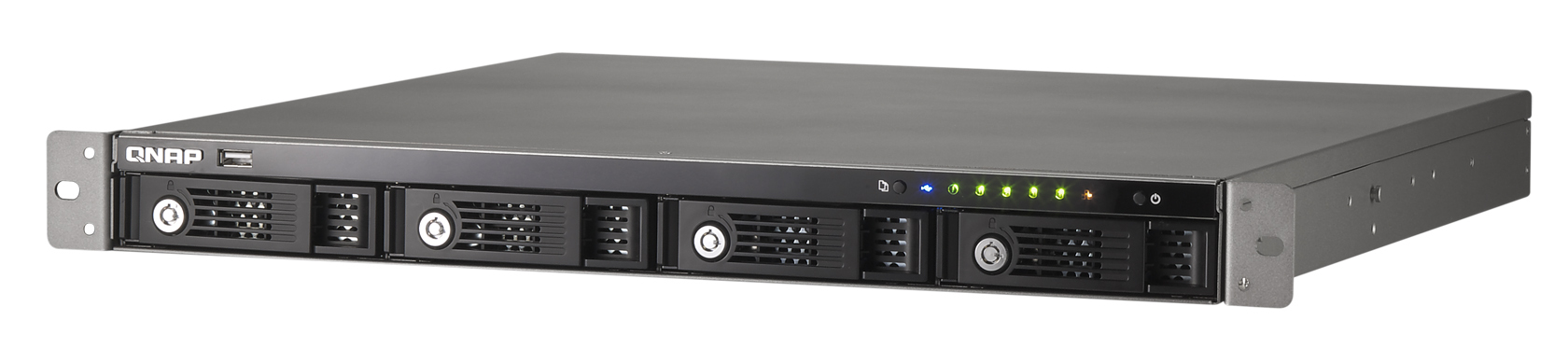

TS-410U 19", 4bay 3.5” SATA,Marvell 800MHz, 512MB RAM, ALL-In-One NAS Server With Windows AD Service Support, iSCSI Target Service, 2x GigaLAN
The 4-bay, 1U rack-mounted TS-410U Turbo NAS is the perfect storage solution with best price performance ratio for SMB and workgroups who need a network attached storage (NAS) server with solid performance, low power consumption, high reliability, and excellent overall value. The Turbo NAS can be easily installed in the server room with rack slide rail kit and efficiently managed by IT personnel over the local network or the Internet. The Turbo NAS is more than a simple networked storage server. It is capable of being a stand-alone download server, centralized network backup, website hosting, network surveillance, and much more.
The Turbo NAS incorporates a Marvell 800MHz CPU and 512MB DDRII memory. It supports 4 2.5-inch and 3.5-inch hot-swappable SATA hard drives (optional purchase) and provides 4 USB ports and 2 eSATA ports for storage expansion or external data backup. It is also equipped with 2 Gigabit LAN ports for multi-IP settings and port trunking (7 bonding modes). The Turbo NAS supports advanced NAS and iSCSI applications to provide a low-cost, highly flexible and efficient IP SAN solution. Up to 8 iSCSI targets can be created on the NAS for storage expansion and a central backup destination for computers and servers. The powerful built-in virtual disk drive (VDD) function allows the Turbo NAS to connect other iSCSI targets on the network to “virtually” expand its capacity.
The Turbo NAS supports RAID 0/ 1/ 5/ 6/ 5+spare, single and JBOD disk configurations. The unique Online RAID Capacity Expansion and Online RAID Level Migration features allow the administrator to expand the storage capacity of the RAID configuration and upgrade the RAID level without turning off the server. A built-in RAID recovery feature is offered to secure the server data against accidental removal of the hard drives.
The Turbo NAS is designed to work with Windows, Mac, Linux, and UNIX networks. Other advanced features include Windows Active Directory (AD), real-time system monitoring, detailed event logs, Simple Network Management Protocol (SNMP), instant SMS alerts, and scheduled power on/ off, etc.
