Other features
| Link/Act LED |
Y |
| Connectivity LEDs |
LAN/USB |
| Networking features |
Gigabit Ethernet |
Processor
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
43098 |
| Processor code |
SLBLA |
| Processor cache type |
L2 |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| Processor operating modes |
64-bit |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.66 GHz |
| Maximum internal memory supported by processor |
4 GB |
| ECC supported by processor |
N |
| Bus type |
DMI |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Number of Processing Die Transistors |
176 M |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Networking
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, CIFS/SMB, AFP, NFS, FTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP |
Design
| Display type |
LCD |
| Chassis type |
Tower |
Additionally
| Internal RAM type |
DDR2 |
| Processing die size |
87 mm² |
| Jumbo Frames support |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Internal RAM |
1 GB |

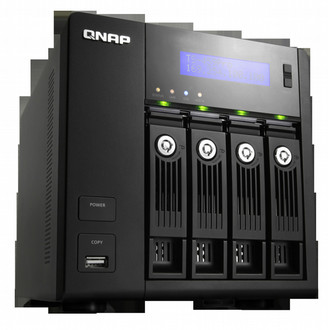

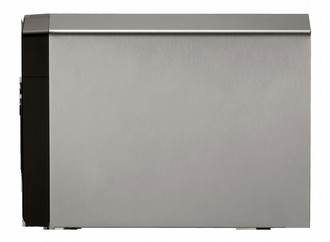

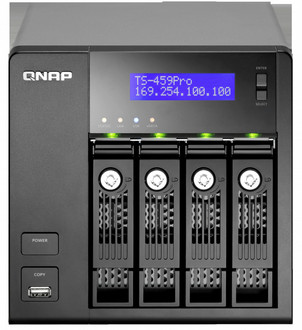

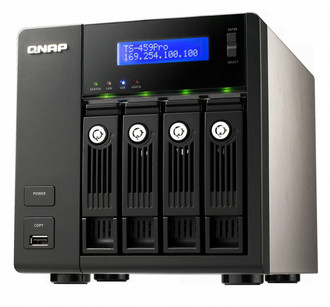

TS-459 Pro Turbo NAS - 1024 MB DDR2, Intel Atom D510 1.66 GHz
Features
QNAPModern businesses face the challenge of dramatic growth of digital data, including emails, documents and databases. Increasingly, IT managers are turning to networked storage to provide reliable, scalable storage, centralized network backup, and easy file sharing. QNAP’s new Business Series Turbo NAS Servers offer affordable high performance storage for SMB, Corporate, and entry-level Enterprise customers.
The TS-459 Pro is the powerful 4-bay network attached storage (NAS ) server, which is designed to provide an affordable and easy-to-management solution with iSCSI service for virtualized and clustered environment. The TS-459 Pro also offers versatile business applications to maximize the efficiency of the data center in the business environment.
Incorporating the next-generation Intel Atom D510 1.66GHz Dual-Core processor and 1GB DDRII RAM, the Turbo NAS delivers exceptional performance and maintains high reliability for multiple concurrent applications and intensive data transfer with guaranteed low power consumption.
The Most Affordable and Flexible Virtualization Solution
The TS-459 Pro is certified as compatible with VMware vSphere4 (ESX 4.0 and above) virtualization platform. The NAS can be utilized as the networked shared storage of VMware virtualization environments and Windows cluster servers. Comparing with traditional SAN (Storage Area Network), the Turbo NAS is a competitive alternative with much lower setup and maintenance costs in an IP SAN.
The Feature-rich and Integrated Applications for Business
The NAS supports file sharing across Windows, Mac, Linux, and UNIX platforms. Versatile business applications such as file server, FTP server, printer server, web server, and Windows AD support are provided. The dominant features, such as WebDAV, Share Folder Aggregation (also known as DFS), IPv6 and IPv4 dual-stack, Wake on LAN, schedule power on/ off, HDD S.M.A.R.T, comprehensive log systems, and policy-based unauthorized IP blocking are all included features of a QNAP NAS server.
