Other features
| Link/Act LED |
Y |
| Connectivity LEDs |
LAN/USB |
| Networking features |
Gigabit Ethernet |
Processor
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
43098 |
| Processor code |
SLBLA |
| Processor cache type |
L2 |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| Processor operating modes |
64-bit |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.66 GHz |
| Maximum internal memory supported by processor |
4 GB |
| ECC supported by processor |
N |
| Bus type |
DMI |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Number of Processing Die Transistors |
176 M |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Networking
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, CIFS/SMB, AFP, NFS, FTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP |
Design
| Display type |
LCD |
| Chassis type |
Tower |
Additionally
| Internal RAM type |
DDR2 |
| Processing die size |
87 mm² |
| Jumbo Frames support |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Internal RAM |
1 GB |

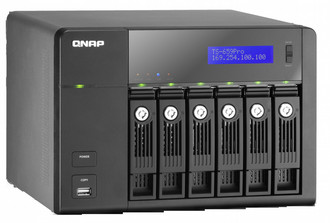

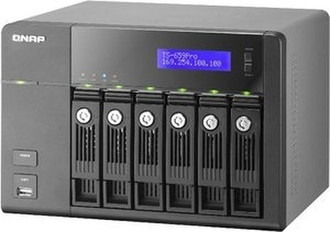

TS-659 Pro - 6x 2.5/3.5" SATA II, 1GB DDR2, 1660Mhz Atom D510, DHCP, USB, RJ-45
Features
QNAPModern business faces the challenge of dramatic growth of digital data, such as documents, emails, applications and so on. To deploy the IT environment with a reliable, affordable and expandable storage center to securely store, share, and back up the digital assets has become an important task for the server managers of the SMB and entry-level enterprise nowadays.
The TS-659 Pro is the powerful 6-bay network attached storage (NAS) server, which is designed to provide a cost-efficient and easy-to-use solution with iSCSI service for virtualized and clustered environment. The Turbo NAS also offers versatile business applications to optimize the usage of as a data storage center in the business environment.
Incorporating the next-generation Intel Atom D510 1.66GHz Dual-Core processor and 1GB DDRII RAM, the Turbo NAS delivers exceptional performance and maintains high reliability for multiple concurrent applications and intensive data transfer with guaranteed low power consumption.
The Most Affordable and Flexible Virtualization Solution
The Turbo NAS is certified as compatible with VMware vSphere4 (ESX 4.0 and above) virtualization platform. The NAS can be utilized as the networked shared storage of VMware virtualization environments and Windows cluster servers. Comparing with traditional SAN (Storage Area Network), the Turbo NAS is a competitive alternative with much lower setup and maintenance costs in an IP SAN.
The Feature-rich and Integrated Applications for Business
The NAS supports file sharing across Windows, Mac, Linux, and UNIX platforms. Versatile business applications such as file server, FTP server, printer server, web server, and Windows AD support are provided. The dominant features, such as WebDAV, Share Folder Aggregation (also known as DFS), IPv6 and IPv4 dual-stack, Wake on LAN, schedule power on/ off, HDD S.M.A.R.T, comprehensive log systems, and policy-based unauthorized IP blocking are also available.
