Other features
| Link/Act LED |
Y |
| Connectivity LEDs |
Y |
| Networking features |
Gigabit Ethernet |
Processor
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
43098 |
| Processor code |
SLBLA |
| Processor cache type |
L2 |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| Processor operating modes |
64-bit |
| L2 cache |
2 MB |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.66 GHz |
| Maximum internal memory supported by processor |
4 GB |
| ECC supported by processor |
N |
| Bus type |
DMI |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Number of Processing Die Transistors |
176 M |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Networking
| iSCSI support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Wi-Fi |
Y |
| Supported network protocols |
TCP/IP, CIFS/SMB, AFP (3.2), NFS (v3), FTP, HTTP, HTTPS, SSH, iSCSI, SNMP |
| Compliance industry standards |
IEEE 802.3ad |
Design
| Display type |
LCD |
| Chassis type |
Tower |
Additionally
| Processing die size |
87 mm² |
| Jumbo Frames support |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
1000 Mbit/s |
TS-659 Pro+, D510, 1.66 GHz, 1M Cache, FCBGA559, 1GB RAM, Flash Memory 512MB, Gigabit Ethernet, RJ-45, USB 2.0, eSATA, LCD, 43W, VGA, black

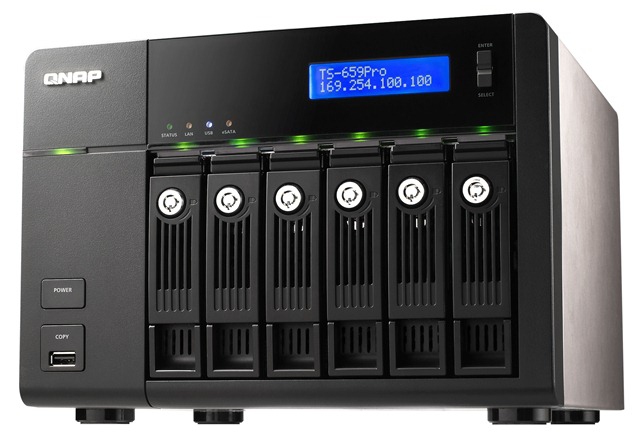

TS-659 Pro+
Modern business faces the challenge of dramatic growth of digital data, such as documents, emails, applications and so on. To deploy the IT environment with a reliable, affordable and expandable storage center to securely store, share, and back up the digital assets has become an important task for the server managers of the SMB and entry-level enterprise nowadays.
The TS-659 Pro is the powerful 6-bay network attached storage (NAS) server, which is designed to provide a cost-efficient and easy-to-use solution with iSCSI service for virtualized and clustered environment. The Turbo NAS also offers versatile business applications to optimize the usage of as a data storage center in the business environment.
Incorporating the next-generation Intel® Atom™ Dual-Core processor and 1GB DDRII RAM, the Turbo NAS delivers exceptional performance and maintains high reliability for multiple concurrent applications and intensive data transfer with guaranteed low power consumption.
