Packaging content
| Cables included |
AC, LAN (RJ-45) |
System requirements
| Linux operating systems supported |
Y |
Performance
| Ethernet LAN data rates |
1000 Mbit/s |
| Throughput data rate |
250 Mbit/s |
| Internal memory |
4000 MB |
| Internal memory type |
DDR3 |
| Maximum resolution |
1920 x 1080 pixels |
| Video formats supported |
H.264, MPEG4, MxPEG |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Maximum frame rate |
30 fps |
| Built-in processor |
Y |
| Processor frequency |
2.6 GHz |
| Backup function |
Y |
| Number of fans |
1 fan(s) |
| Supported network protocols |
HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP |
| Video input channels |
16 channels |
Power
| Power consumption (typical) |
62.7 W |
| AC input frequency |
50/60 Hz |
| Power |
250 W |
Weight & dimensions
| Depth |
235 mm |
| Width |
180 mm |
| Weight |
4600 g |
| Height |
185 mm |
| Package weight |
5900 g |
Ports & interfaces
| USB 2.0 ports quantity |
5 |
| RAID levels |
1, 5+HS, 5, 6 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Storage
| Number of hard drives supported |
4 |
| Maximum storage capacity |
24 TB |
| RAID support |
Y |
| Hard drive interface |
Serial ATA II, Serial ATA III |
Features
| Reset button |
Y |
| LED indicators |
HDD, LAN, Status, USB |
| Certification |
CE, FCC, VCCI, BSMI |
| Rack mounting |
N |
Operational conditions
| Operating relative humidity (H-H) |
5 - 95% |
Additionally
| Colour of product |
Black |
| Выход HDMI |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 40 °C |
4GB RAM, Flash 512 Mb, SATA III, 24TB max, 2 x RJ-45, 2 x USB 3.0, 5 x USB 2.0

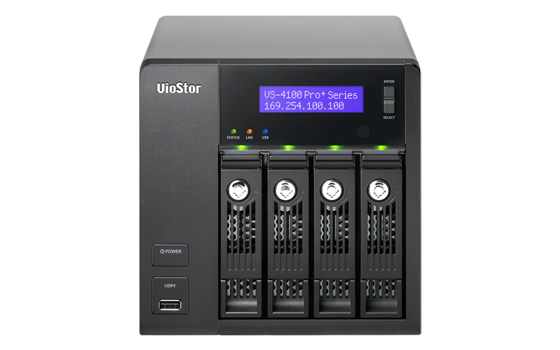

Powered by the Intel dual-core processor and 4GB of memory, it delivers high performance at a throughput rate of 250 Mbps to ensure stable recordings and smooth playbacks of multiple megapixel cameras. The 4-bay rackmount VS-4116U-RP Pro+ is designed for the SMB segment with the features of robust performance, solid reliability and high-definition local display.
The VS-4116U-RP Pro+ can support up to 16TB of storage capacity, with 4TB on each hard drive respectively, to accommodate high quality H.264, MPEG-4, M-JPEG, and MxPEG recording videos. The VS-4116U-RP Pro+ supports local display via an HDMI cable, with up to 180 fps Full HD 1080p local display by hardware decoding.
QNAP VioStor NVR (Network Video Recorder) is designed for high quality megapixel recording, and high performance real-time monitoring. It is a reliable standalone NVR with powerful surveillance features and mass storage capacity. Based on Linux OS, the NVR supports H.264, MPEG-4, M-JPEG and MxPEG recording from over 1,100 network camera models from popular brands. With QNAP's unique multi-server monitoring feature, multiple VioStor NVRs can be cascaded together for central monitoring of up to 128 channels of video surveillance. The VioStor NVR is an ideal solution for small, medium, and large facilities that integrate IP cameras, advanced intelligent video analytics and RAID storage technologies to help companies provide a safe environment for employees and protect company assets.
- Supports a Broad Range of IP Cameras
- The VioStor NVR supports H.264, MPEG-4, M-JPEG, and MxPEG recording from over 1,000 network camera models of many popular brands.
- PC-less Network Surveillance by HD Local Display
- The VioStor NVR supports PC-less system configuration, monitoring of IP cameras over the network, and video playback by a monitor or high-definiton TV, a USB mouse, and a USB keyboard.
- Multi-server Monitoring
- You can connect to the VioStor NVR and add other QNAP NVR servers to monitor up to 128 channels on a PC over LAN or WAN.
- Intelligent Video Analytics (IVA) for Fast Video Retrieval
- The VioStor NVR supports intelligent video analytics (IVA), such as motion detection, missing object, foreign object, out of focus, and camera occlusion to provide fast video retrieval.
- Advanced Event Management
- The compatibility between the NVR and the surveillance devices are strengthened to provide more event handling options when events are detected or alarms are triggered on the IP cameras.
- Live View on Mobile Devices by VMobile
- With VMobile installed on your Android phone, iPad, iPhone, iPod touch, or Windows PDA phone, you can monitor your home and office and receive instant event alert anytime, anywhere.
- RAID Data Protection
- The VioStor NVR supports RAID 1, 5, 6, 5+hot spare, 6+hot spare to protect the recording data against hard drive failure. Single disk, JBOD, and RAID 0 are also offered**.
- Convenient Video Backup to External USB Storage
- You can press the one-touch-auto-video-backup button on the front of the NVR to copy the data from the NVR to an external storage device.
- Linux-embedded System
- The VioStor NVR is a Linux-embedded system which is more powersaving and less vulnerable to virus attack compared to PC-based surveillance solutions.
