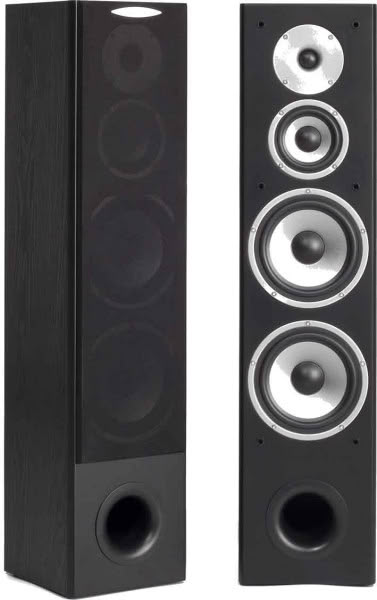

Quadral Quintas 404 II

Product type: Floor-standing speaker
Series: Quadral Quintas

Operation
Principle: passive

Performance
Music power (PMPO): 240 Watt
Sensitivity: 89 dB/mW
Nominal load: 120 Watt
System: 3-way
Transition frequencies: 1,500 Hz, 3,500 Hz
Frequency response: 28 - 22.000 Hz
Frequency response of: 28 Hz
Frequency response up to: 22.000 Hz
Impedances: 4 Ohm, 6 Ohm, 8 Ohm

Design
Housing color: black
Speaker cover color: black
Color of speaker diaphragm: silver
Surface: matte
Front color: black
Color: black

Construction method
Housing characteristics: Bass reflex, removable speaker cover
Number of tweeters: 1
High-frequency chassis: 25 mm
Design tweeter: Dome
Number of midrange drivers: 1
Midrange chassis: 100 mm
Number of woofers: 2
Bass chassis: 170 mm
Number of bass reflex ports: 1
Position of bass reflex port: Front side

Dimensions and scope of delivery
Weight: 9,5 kg
Scope of delivery: Speaker cover, user manual
Width: 200 mm
Height: 850 mm
Depth: 210 mm

Further properties
Areas of application: Home cinema, Hi-Fi system, living room
Configurations: Floor, vertical
Market launch: 2010
