Features
| Backlight |
N |
| Memory function |
N |
Operational conditions
| Temperature range (T-T) |
-50 - 125 °C |
Packaging content
| Handheld remote control |
N |
Flush On/Off Thermostat, -50.0°C - +125.0°C, 868.4 MHz
This Z-Wave module can be used to directly control an electrical or water floor heating system, electric water heater, hot water pump, electrical radiator, etc...
<b>The most simplified installation</b>
Installation of the module is carried out in two parts.
The first consist of mounting the module inside a mounting box, which is really simple due to the extremely small size and special designed casing (ease of cabling fixing). Proved and tested by professional electricians.
Temperature sensor can be installed inside temperature sensor casing (find here more about temperature sensor casings) or according to user needs (inside the tube of the water boiler for temperature sensor, on the water pipe, ...)
<b>Incredible sensor temperature range</b>
Temperature sensor measures temperature from -50.0°C to +125.0°C, with a 0.1°C resolution.
<b>No batteries required – Connect direct to any heating device</b>
As it is connected directly to either 230VAC or 24VDC, no batteries are required.
<b>Hidden thermostat - clean walls</b>
There is no need to have big room thermostat on the wall, because the temperature set point is set through a Z-Wave network.
<b>Universal Thermostat – even for water boiler</b>
The Z-Wave module can be used to directly control an electrical or water floor heating system, electric water heater, hot water pump, electrical radiator, etc.
<b>Reduce energy consumption, decrease your electricity costs and contribute to a greener environment</b>
Extremely low own energy consumption, less than 0,4W.
Module is measuring the power consumption of the connected electrical device in Watts and total consumption in kWh. The power consumption data can be easily collected and agregated without any additional costs.
<b>Top quality and long durability</b>
We believe that products should be made to last, therefore we have selected only top quality electronic components.
Safety test of temperature rise, construction requirements, insulation resistance and electric strength, overload test according to EN 60669-2-1 standard done by an independent institute (SIQ – Slovenian Institute of Quality and Metrology).
<b>Packaging</b>
Blister packaging is designed for retailers but at the same time it ensures lower cost of delivery.

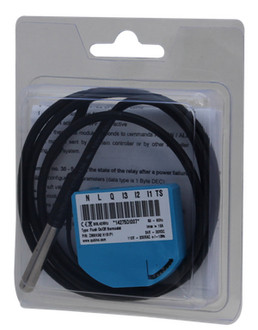

Package contains: 1 module, 1 temperature sensor and 1 User manual
