Weight & dimensions
| Radiator depth |
140 mm |
| Radiator height |
32 mm |
| Radiator width |
310 mm |
| Fan diameter |
140 mm |
| Fan thickness |
25 mm |
Technical details
| Compatible tubes (Outer x Inner) |
12.5 x 9.5 |
| Coolant capacity |
0.375 L |
| Pulse-width modulation (PWM) support |
Y |
| Fan connector |
4-pin |
| Maximum airflow |
79.933 cfm |
| Minimum airflow |
41.8 cfm |
| Fan noise level (min) |
20.2 dB |
| Fan noise level (max) |
35 dB |
| Pump noise level |
20 dB |
| Pump motor speed |
3200 RPM |
| Number of fans |
2 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, LGA 2011-v3 (Socket R), LGA 1151 (Socket H4), Socket FM2+, Socket FM1 |
| Fan speed (max) |
2000 RPM |
| Fan speed (min) |
1000 RPM |
Power
| Fan power consumption |
3 W |
| Pump power consumption |
4 W |
| Pump voltage |
12 V |
| Fan current |
0.25 A |
Design
| Radiator material |
Aluminium |
375ml, 0.09 °C/W, 80 CFM, 120 L/Hour, 3200 RPM, Aluminium Radiator / Copper Cold Plate

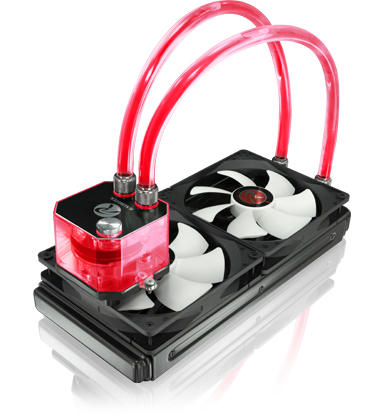

TRITON 280 series, Liquid Cooling System in All-In-One concept, is designed in Germany and made in Taiwan. With several years of experience in Liquid cooling products and the cooperation with German Engineers, RAIJINTEK’s R&D team developed the new standard of most performing DIY liquid cooling components and spent years to develop one of the best performing and expandable All-In-One Liquid CPU cooler for enthusiasts. TRITON’s copper water block is with a new concept design of micro channels, extra large contact fin area with 2 flow channels for the best direct flow of liquid. More than this, TRITON’s Pump is also new and exclusive, designed for high Q-Max, low dBA, contains a reliable Bearing type. Using this features plus the radiator with high density fins, equips this All-In-One OPEN LOOP with extreme performance and super silent ambitions. TRITON series is not only one of the best performing All-In-One liquid cooler at the market but it is the most user friendly AIO cooler in the world by the pre-filled liquid, 3 different color for your scheme by your convenience, wide PWM performing of 14025 fan, a solid mounting kit, compatible with all modern sockets of Intel & AMD and an easy installation. TRITON series, already breaking the boundary line between DIY & All-In-One, brought to you for the joy of friendly design and the surprisingly efficient performance.
