Power
| Input frequency |
50/60 Hz |
| Nominal output voltage |
208-240 V |
| Power protection features |
Overload |
| Nominal input voltage |
208-240 V |
| Load capacity |
16600 VA |
| Maximum total current draw per phase |
50 A |
| Maximum input current per phase |
40 A |
Ports & interfaces
| AC outlets quantity |
6 |
| Serial ports quantity |
1 |
| Input connection type |
CS8365C |
Operational conditions
| Operating altitude |
0 - 3050 m |
Management features
| Management platform |
SNMP v2/v3, TRAPs, GETs, SETs |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
6 x IEC C-19 Outlets, 1 x CS8365C In, 14.4 - 16.6 kVA, 208-240V AC, 3-phase, 1 x 10/100 Mbps RJ-45, 1 x RS-232, SNMPv2/v3, TRAPs, GETs, SETs, 0U

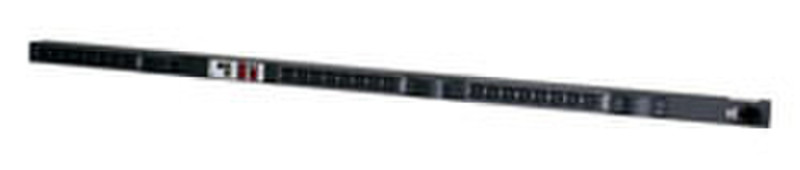

The Raritan PX-4000 family of high-quality rack power distribution units (PDUs) offers real-time remote unit-level and individual outlet-level power monitoring of current (amps), voltage, power (kVA, kW), power factor and energy consumption (kWh) with ISO/IEC +/- 1% billing-grade accuracy. The PX-4000 also supports Raritan’s plug-and-play environmental sensors. Users can define thresholds and receive alerts when thresholds are crossed for both power and environmental events.
The PX-4000 series is available in Zero U (vertical mount) and 1U and 2U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. Precise power information can be monitored, and the PX-4000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-4000 series is fully compatible with Raritan's Power IQ energy management software solutions.
