Data transmission
| MAC address table |
2000 entries |
| Store-and-forward |
Y |
| Switching capacity |
1.6 Gbit/s |
Operational conditions
| Heat dissipation |
20.5 BTU/h |
| Operating altitude |
0 - 10000 m |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Networking
| Flow control support |
Y |
| Cable types supported |
Cat5 |
| Auto-sensing |
Y |
| 10G support |
N |
| Full duplex |
Y |
Design
| DIN rail mounting |
Y |
| Rack mounting |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
8 Port 10/100BaseTX Industrial Ethernet Switch, unmanaged, IEEE 802.3, 2000 MAC, 1.6 Gbit/s

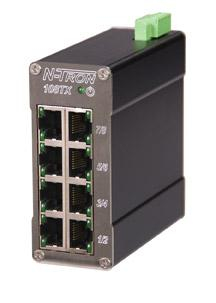

The N-TRON 108TX is a low cost, unmanaged eight port Industrial Ethernet switch. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications.
The 108TX industrial network switch is designed to meet the most demanding industrial communications requirements while providing high throughput and minimum downtime.
The 108TX provides eight RJ-45 auto sensing 10/100BaseTX ports. All ports are full/half duplex сapable, using leading-edge Ethernet switching technology. The 108TX auto-negotiates the speed and flow control capabilities of the eight TX port connections, and configures itself automatically.
Since the 108TX is auto sensing, there will be no need to make extensive wiring changes if upgrades are made to host computers, plant systems, or Ethernet I/O modules. The switching fabric simply scales up or down automatically to match specific network environments.
The 108TX supports up to 2,000 MAC addresses, enabling these products to support extremely sophisticated and complex network architectures.
The 108TX is an ideal candidate for upgrading existing hubs and repeaters to increase bandwidth and determinism by virtually eliminating network collisions. The 108TX combines affordability and the plug & play simplicity of the unmanaged hub.
The 108TX can simplify plant wiring by eliminating the need to bring data acquisition and control network connections back to a climate controlled environment. The 108TX has extended operating environmental specifications to meet the harsh needs of the industrial environment. For cost savings and convenience the network switch can be DIN-Rail mounted alongside Ethernet I/O or other Industrial Equipment.
To increase reliability the 108TX includes dual redundant power inputs. LEDs are provided to display the link status and activity of each port.
