Ports & interfaces
| Line-out |
Y |
| Digital audio optical out |
1 |
| Line-in |
Y |
| Microphone in |
N |
| S/PDIF out port |
Y |
| Subwoofer out |
N |
| S/PDIF in port |
Y |
| Digital audio optical in |
1 |
| MIDI/Joystick port |
Y |
| Host interface |
PCI |
| CD/AUX audio in |
N |
Software
| Mac operating systems supported |
Y |
System requirements
| USB required |
N |
| Optical drive required |
N |
Audio
| Internal |
Y |
| Frequency range |
28 - 200000 Hz |
| Line-in Signal-to-Noise Ratio (SNR) |
110 dB |
| Line-out Signal-to-Noise Ratio (SNR) |
110 dB |
| Audio quality |
24 bit |
| Digital-to-Analog Conversion (DAC) |
24-bit/192kHz |
| Audio A/D Converter (ADC) |
24-bit/192kHz |

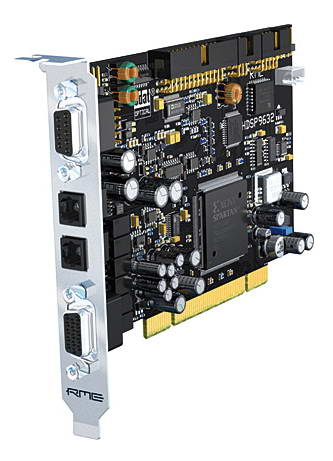

- RME presents the world's most versatile PCI Audio Interface - the Hammerfall DSP 9632. This card makes the dream of an All-In-One solution for every possible application come true. As usual, RME has not made any compromises: Latest 192 kHz AD- and DA-converters with more than 110 dB signal to noise ratio, all inputs and outputs simultaneously operational, easy-to-install optional hi-quality analog expansion boards, the famous TotalMix, a newly developed sensational clock section with maximum jitter suppression of external clock signals - all this combines into a 'soundcard' that the world has been waiting for so long.
