Power
Power factor |
0.98 |
Efficiency |
88% |
Output voltage THD |
3% |
Power supply input frequency |
50/60 Hz |
Output power capacity |
2000 VA |
Crest factor |
3:1 |
Output power |
1400 W |
Performance
Noise level |
45 dB |
Number of phases |
1 |
Audible alarm(s) |
Y |
Other features
Interface |
RS-232 |
Output connections |
4 x 5-15R & 2 x 5-20R |
Overload protection |
Y |
Communication options, slot |
Relay ContactBoard, SNMP/WEB Card |
Battery
Battery recharge time |
8 h |
Operational conditions
Operating altitude |
0 - 3000 m |
2000VA, 1400W, 4 x 5-15R & 2 x 5-20R Outlets, RS232

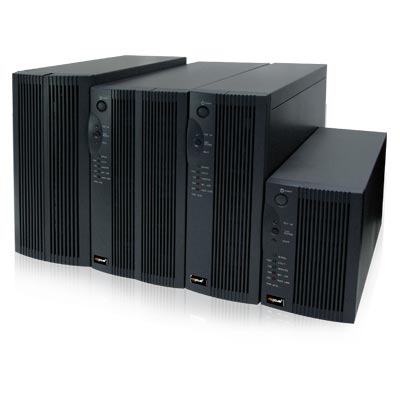

Intelligent On-line UPS
In today’s world we are heavily reliant on technology and the power that drives it. If you do not have the correct protection you are putting your business at risk of downtime, lost data and even component damage. The intelligent Prestige series is a cost effective way of meeting your critical power needs and is seamlessly integrated into the modern network environment.
- Double Conversion Online Technology
- Unity Input Power Factor
- Single-Chip Microprocessor Control
- Pure Sine wave Output
- User Friendly Display
- Smart RS-232 Communication Interface
- User-friendly Plug and Play Design
- Customer Options Slot
- Matching Battery Cabinet
- Optional Powerful Charger Available
Unity Input Power Factor
Meets today’s industry standard for energy saving and low reflected harmonic pollution to the Utility.
Single-chip Microprocessor Control
The Prestige series uses a field proven MPU to substantially reduce the component count. This provides greater reliability, functionality and smaller size than other designs. Reliability is increased by the use of the latest high frequency techniques and quality components. High system efficiency is achieved in all operation modes saving electricity.
User Friendly Display
The front panel clearly communicates all major system parameters and system status including load level, remaining battery life and fault status.
User Friendly Plug and Play Design
The Prestige series can easily be installed by the end user. All units up to 2KVA are supplied with input cables and IEC output cables as standard. For convenience, we also add local sockets in addition to IEC outlets.
Complete Protection Circuitry
The Prestige series was designed with today’s technology in mind and is particularly suited to computer and telephony switch mode power supply.
Through careful design, maximum security is provided to the load. In particular the units feature high overload handling without transfer to bypass.
Short circuit and overheating protection are standard features.
The input PFC circuitry can handle a very wide range of AC input voltages to avoid the frequent use of battery energy. Consequently, the system security and battery life can be maximized so that the batteries are available when you need them most… during Power failures!
Customer Options Slot

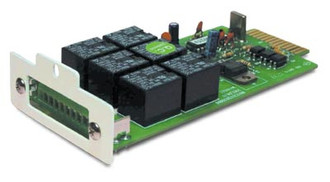

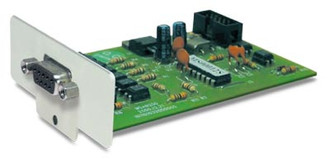

A true RS232 communication port is supplied as standard with each UPS. This can be used with the software provided or an external SNMP adapter. The Options slot allows further flexibility in network configuration. Three cards are available: an internal SNMP card, AS/400 card or a true relay card to provide isolated contacts for industrial and remote alarm panel applications.
Double Conversion On-line Technology
Power disturbances from the Utility are eliminated because the UPS regenerates the power to provide clean electricity.

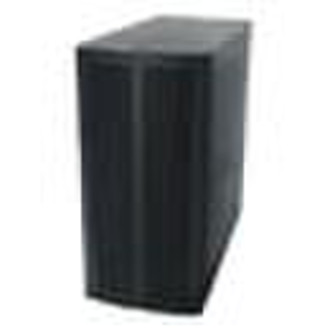

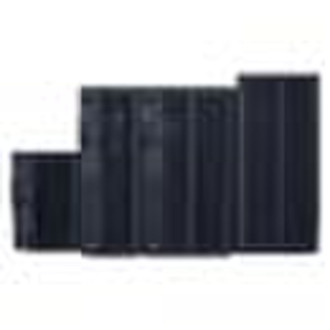

Matching Battery Cabinet
Standard matching battery cabinets are available to easily extend the UPS runtime to several hours.
The battery cabinets are available with their own independent chargers to provide safe and fast recharging.
Smart Battery Management System (SBM)
Smart battery management system monitors the battery charging and discharging status.
Communication

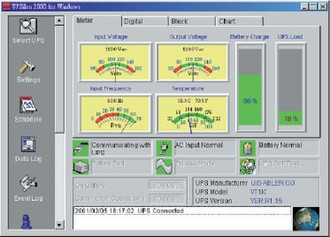

The Prestige series are all shipped with shutdown software as standard. The software allows not only the control of the UPS and smooth shutdown when the Utility fails, but also allows the user to:
- remotely test the major operating functions of the UPS
- communicate via SNMP/Web/Network adapter
- access UPS functions via the Web
- alert users via SMS messages about specific events.
The free software supplied supports Novell Netware, Windows 95/98/2000/ME/XP/NT/Vista, Linux and FreeBSD.
Major UNIX platforms are available as a cost option.
