Lens system
| Fixed focal length |
10 mm |
| Maximum aperture number |
22 |
| Focal length range (f-f) |
3.1 - 22 mm |
| Diagonal angle of view (max) |
105.9 ° |
| Closest focusing distance |
0.24 m |
| Internal focus (IF) |
Y |
| Number of diaphragm blades |
6 |
| Component for |
SLR |
| Number of aspheric elements |
2 |
| Focus adjustment |
Manual |
| Image stabilizer |
N |
| Minimum aperture number |
3.1 |
Performance
| Manual focus |
Y |
| Lens hood |
Y |
10mm, APS-C, T3.1-22, UWA, Ø87mm, 14/9, Sony A

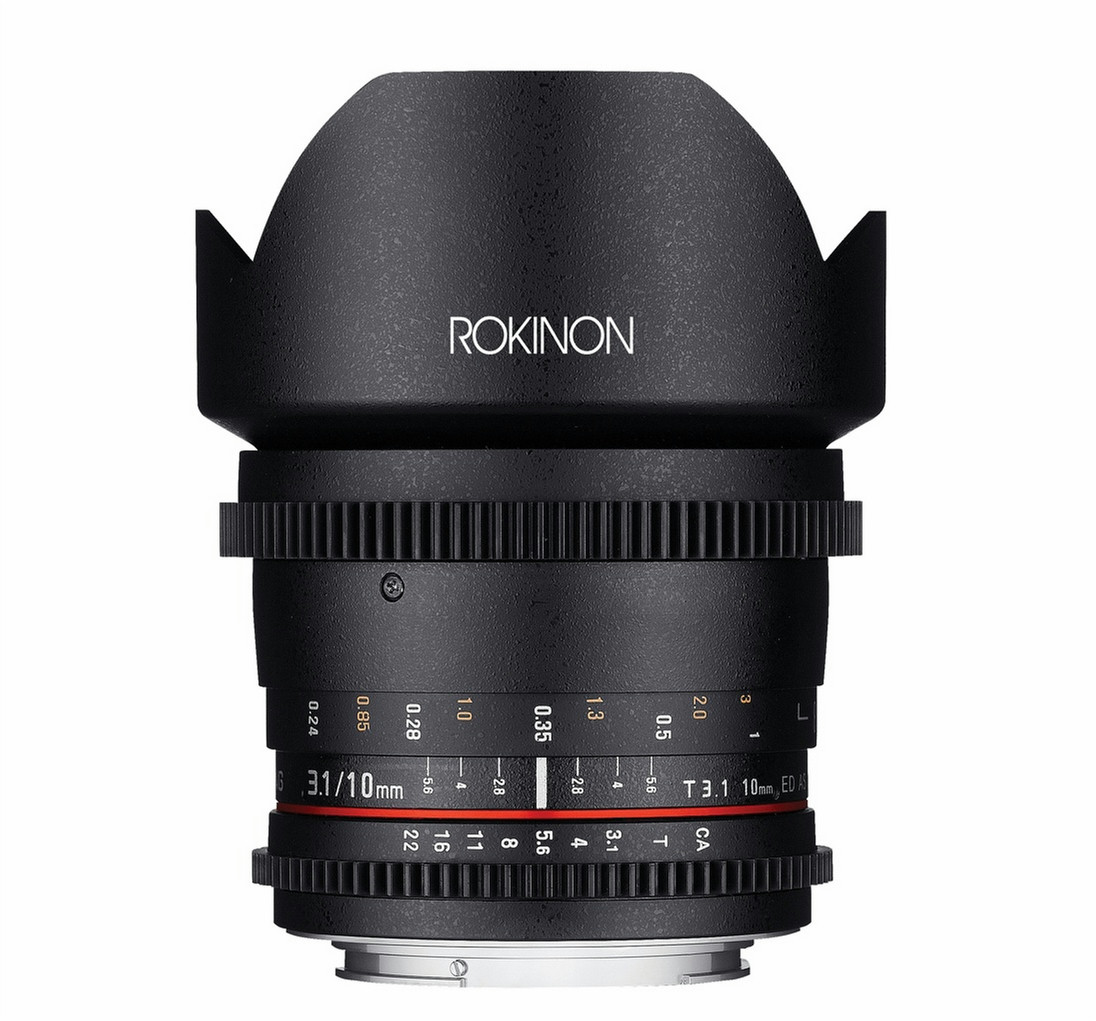

The Rokinon 10mm T3.1 Cine Lens for Canon EF Mount is a wide-angle lens optimized for digital cinematography. The lens produces an image circle that will cover APS-C sized sensors or smaller. For use with a follow focus unit, the focus and aperture rings feature industry-standard 0.8 pitch gearing. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operates on the side of the camera.
With an angle of view of 105.9°, the lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. One extra-low dispersion element (ED) and two aspherical elements have been incorporated into the optical design to minimize chromatic aberrations and distortion in order to produce sharper images. Additionally, a Nano Coating System (NCS) has been applied to the lens elements in order to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery.
- 10mm lens with 105.9° angle-of-view
- Aperture Range: T3.1 to T22
- Image Circle covers APS-C sized sensors
- Industry Standard 0.8 pitch gearing on focus and aperture rings
- De-clicked aperture for smooth focus pulls
- 14 elements in 9 groups, including one ED and two aspherical elements
- Nano Coating System improves light transmission, minimizes flares and ghosting for higher contrast images
- Depth of Field markings on side of the lens
- A minimum focusing distance of 9.45"
- Integrated lens hood (not removable)
