Data transmission
| MAC address table |
1000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/1000 Mbit/s |
| Maximum data transfer rate |
1000 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Networking features |
Gigabit Ethernet |
Ports & interfaces
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Gigabit Ethernet (copper) ports quantity |
5 |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

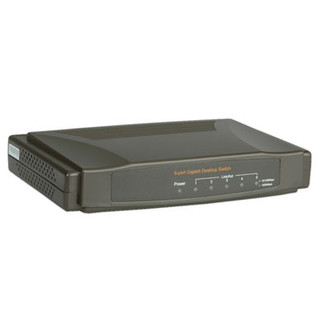

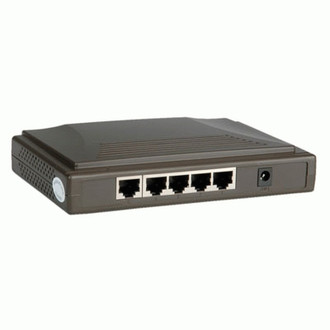

21.99.3516, 5-port, Gigabit Ethernet, Auto MDI/MDI-X, Full-Duplex
The VALUE Gigabit Ethernet Switches are ideal as network centres for small to medium sized fast LANs. The Gigabit Ethernet ports can be connected to a Server and Sub-Networks (with one of the VALUE 10/100 Switches with Gigabit Uplink).
- Shielded RJ-45 ports;
- Five 10/100/1000Mbps ports, each with Auto-Negotiation and Full-Duplex-Mode for 1000Mbps;
- Automatic MDI / MDI-X recognition on all ports;
- Stores up to 8K MAC-addresses;
- Supports Flow control and back-pressure according to IEEE 802.3x.
