Networking
Data transfer rate |
1000 Mbit/s |
Ethernet LAN data rates |
1000 Mbit/s |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |

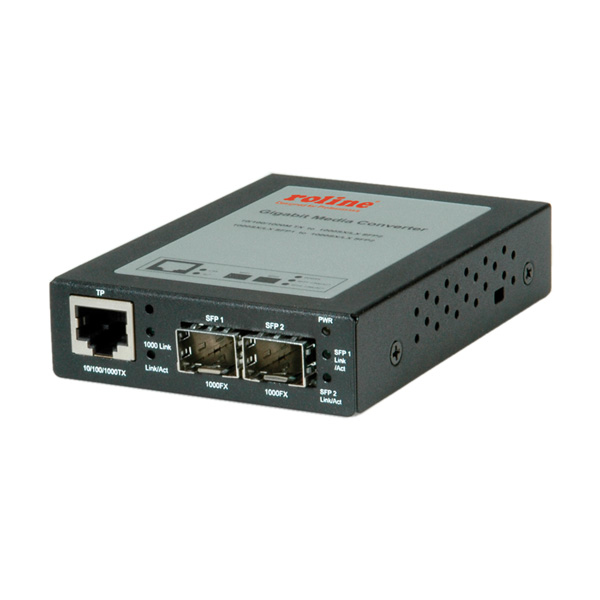

Gigabit Converter, RJ-45 to Mini GBIC
For adaptation of different cabling within a LAN FO converters can be used to obtain a functional network. Whether to implement fiber optic on a classic twisted pair network with a mini-GBIC or for the implementation of fiber optic to another fiber optic network with two mini-GBICs.<br />The ROLINE Gigabit converter offers both possibilities.<br />The ROLINE Gigabit converter is a Gigabit Ethernet TP port to fiber or a fiber port to a second fiber port. The fiber optic connectors can be freely selected by means of mini-GBIC Module<br /><br /><ul><li>Compliant with IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Gigabit Ethernet Standards</li><li>Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port, 2x Mini-GBIC slots on the fiber optic side</li><li>Power is supplied via an external power supply (included)</li><li>TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation</li><li>Each SFP slot supports both singlemode and multimode or mixed</li><li>Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)</li><li>Dimensions: 102 × 75 × 23 mm</li><li>Contents: Converter, power supply, short manual</li></ul><br />Optional GBIC-modules:<br />- ROLINE Mini-GBIC Module SX/LC, Multi-Mode (21.14.3500)<br />- ROLINE Mini-GBIC Module LX/LC, Single-Mode, 10 km (21.14.3501)<br />- ROLINE Mini-GBIC Module LX/LC, Single-Mode, 20 km (21.14.3502).
