Data transmission
MAC address table |
4000 entries |
Store-and-forward |
Y |
Supported data transfer rates |
10/100/1000Mbit/s |
Maximum data transfer rate |
1 Gbit/s |
Other features
Bandwidth |
10 Gbit/s |
Power LED |
Y |
Wi-Fi |
N |
Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
Auto MDI/MDI-X |
Y |
Flow control support |
Y |
Full duplex |
Y |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
5 |
DC-in jack |
Y |
Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
Protocols
Supported network protocols |
CSMA/CD |
Operational conditions
Operating temperature (T-T) |
32 - 104 °F |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |
Additionally
Jumbo Frames support |
Y |
Wireless technologies |
Wired |

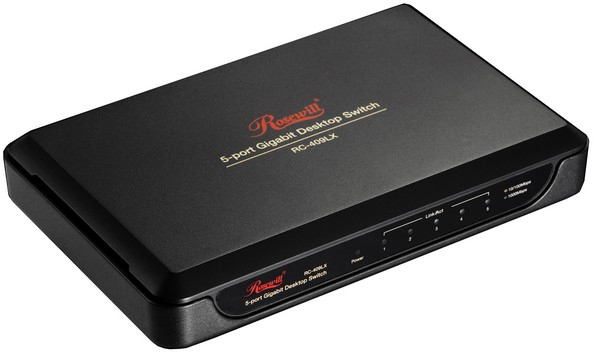

Switch 10/100/1000Mbps 5x RJ45 Auto-Negotiation RJ45 ports (Auto MDI/MDIX), 4K MAC Address Table, 896Kbit Buffer Memory
- Adopts Green Ethernet technology with ability to detect cable length with best adjust power consumption.
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
- Supports MAC address self-learning and auto MDI/MDIX.
- Store-and-Forward switching method.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.
- Plastic case, desktop or wall-mounting design.
- Background Bandwidth: 10Gbps.
- External power adapter supply.
- Forwarding Rate: 10BASE-T: 14880pps/port; 100BASE-TX: 148800pps/port; 1000BASE-T: 1488000pps/port.
