Operational conditions
| Operating temperature (T-T) |
32 - 104 °F |
Ports & interfaces
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
Other features
| Power LED |
Y |
| Wi-Fi |
N |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000Mbps |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Performance
| Packet buffer memory |
0.128 MB |
Protocols
| Supported network protocols |
CSMA/CD |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

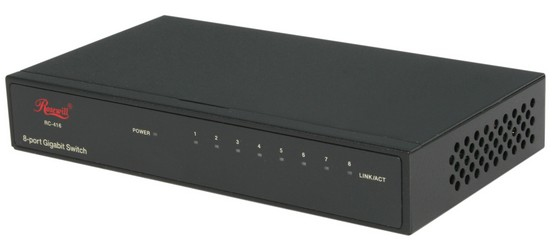

Gigabit Ethernet Desktop Metal Switch @ Jumbo Frame, 10/100/1000Mbps, 8x RJ45, 8K MAC Address, Table, 1024K bits (128K bytes) Buffer Memory
- Supports IEEE802.3az Energy Efficient Ethernet which allows individual ports to enter a low power idle base on data flow usage.
- Complies with 10BASE-T specifications of the IEEE802.3 standard.
- Complies with 100BASE-TX specifications of the IEEE802.3u standard.
- Complies with 1000BASE-T specifications of the IEEE802.3ab standard.
- 8 x 10/100/1000Mbps RJ-45 Nway ports.
- Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (Half/Full) auto-detection.
- Supports MDI/MDI-X auto crossover.
- Supports full and half duplex operation on all ports.
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x).
- Wire-speed packet filtering and forwarding rate.
- Store-and-forward architecture filters fragment & CRC error packets.
- Supports 8K MAC address entries in whole system.
- 1024K bits (128K bytes) buffer memory.
- Supports 9K Byte Jumbo frame.
- Supports extensive LED indicators for network diagnostics.
- External power adapter.
- FCC VCCI Class A, CE, VCCI.
