Data transmission
MAC address table |
1000 entries |
Store-and-forward |
Y |
Supported data transfer rates |
10/100Mbps |
Maximum data transfer rate |
0.1 Gbit/s |
Networking
Port mirroring |
N |
VLAN support |
N |
Auto MDI/MDI-X |
Y |
Flow control support |
Y |
10G support |
N |
Full duplex |
Y |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
8 |
Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Performance
Packet buffer memory |
0.96 MB |
Stackable |
N |
Management features
Quality of Service (QoS) support |
Y |
Other features
Power LED |
Y |
Wi-Fi |
N |
Ethernet LAN data rates |
10, 100 Mbit/s |
Operational conditions
Operating temperature (T-T) |
32 - 104 °F |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |
Additionally
Jumbo Frames support |
N |
Ethernet LAN connection |
Y |
Wireless technologies |
Wired |

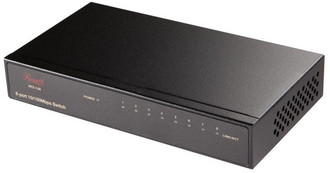

10/100Mbps Switch, 10/100Mbps, 8x RJ45, 1K MAC Address Table, 96KB Buffer Memory
- 8x 10/100Mbps RJ-45 Nway ports.
- Supports 802.3az Green Ethernet: Detecting port usage power saving and cable length power saving.
- Supports NWay protocol for speed (10/100Mbps) and duplex mode (Half/Full) auto-detection.
- Supports MDI/MDI-X auto crossover.
- Supports full and half duplex operation on all ports.
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x).
- Wire-speed packet filtering and forwarding rate.
- Store-and-forward architecture filters fragment & CRC error packets.
- Supports 1K MAC address entries in whole system.
- 768K bits (96KB) buffer memory.
- FCC Class B, CE VCCI.
