Security
| Firewall security |
IP address filtering, Domain Name filtering, MAC address filtering |
| VPN support |
PPTP, L2TP, IPSec |
| NAT functionality |
Virtual Server, Special Application, DMZ host |
| Firewall |
Y |
| MAC address filtering |
N |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Software
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Web-based management |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, CCK, DBPSK, DQPSK |
Other features
| Mobile network connection |
N |
| xDSL connection |
N |
| Bandwidth (second) |
2.4835 GHz |
| Bandwidth (first) |
2.4 GHz |
| Frequency range |
2.4 - 2.4835 GHz |
| Rack mounting |
N |
| Input current |
0.6 A |
Networking
| Management protocols |
HTTP |
Protocols
| DHCP client |
N |
| DHCP server |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Filtering |
LAN ACL |
| Ethernet LAN (RJ-45) ports quantity |
5 |

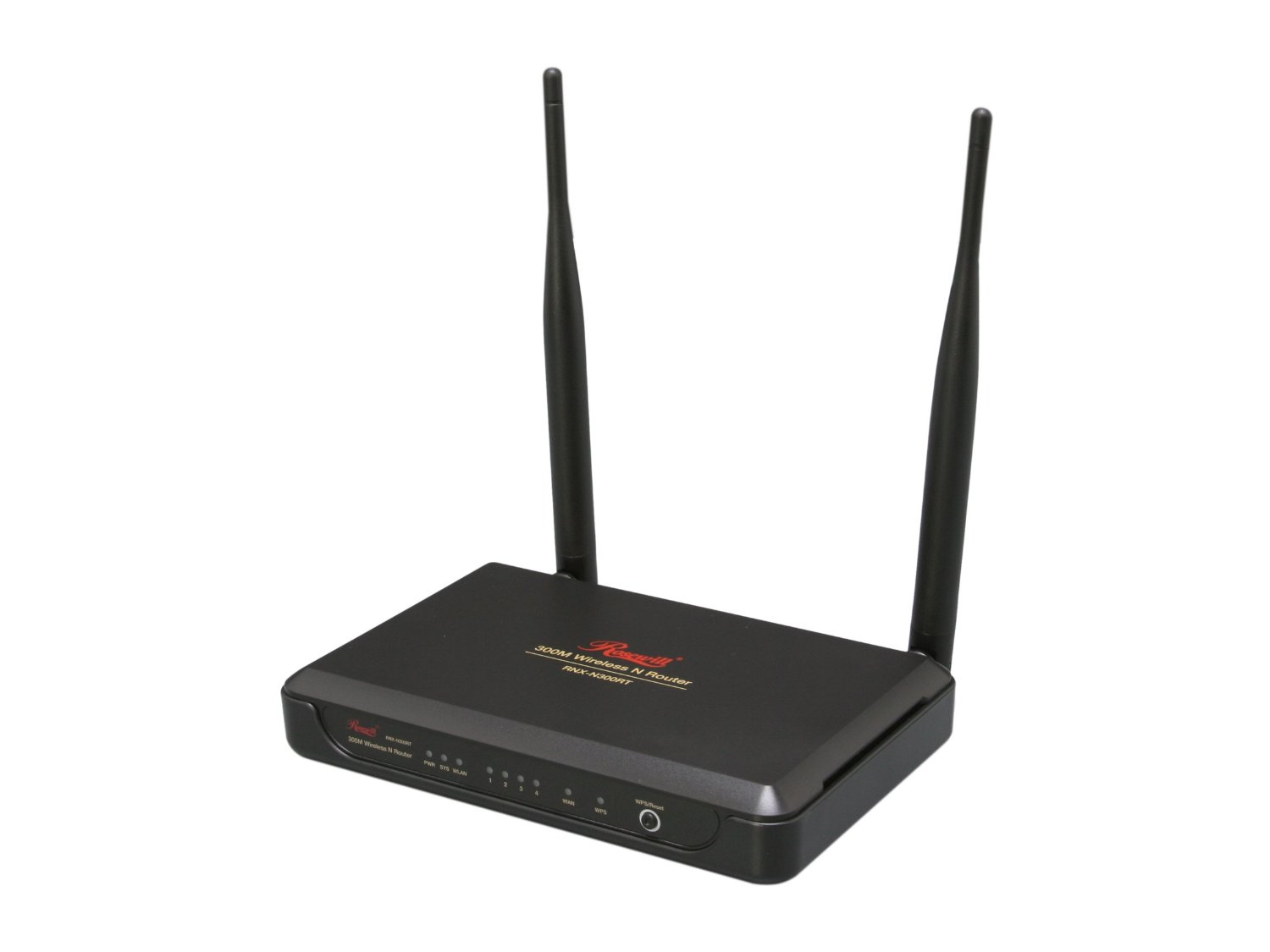

RNX-N300RT - 2.4GHz - 2.4835GHz, 300Mbps, IEEE 802.3/3u, IEEE 802.11b/g, IEEE802.11n Draft 2, Ethernet port
- Data rate up to 300Mbps, 2T2R MIMO technologies deliver greater coverage and higher speed
- Supports IEEE802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u and compatible with IEEE 802.11n
- Supports TCP/IP, PPPoE, DHCP, ICMP, NAT, Dynamic IP, Static IP, PPTP, L2TP
- Supports Wireless Roaming
- Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption
- Supports wireless LAN ACL (Access Control List) filtering
- Built-in DHCP server supporting static IP address distributing
- Built-in NAT server supporting Virtual Server, Special Application, and DMZ host
- Supports UPnP, Dynamic DNS, Static Routing, VPN pass-through
- Built-in firewall with IP address filtering, Domain Name filtering, and MAC address filtering
- WDS wireless bridge provides seamless bridging to expand your wireless network
- Supports Flow Statistics
- Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
- Supports WPS (WIFI Protected Setup) push button
