Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Antenna
| Gain |
5 dBi |
| Detachable antenna(s) |
Y |
| Frequency range |
2.412 - 2.4835 GHz |
Other features
| Link/Act LED |
Y |
| Power LED |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
System requirements
| Internet connection required |
Y |
Networking
| Frequency band |
2.4 - 2.484 GHz |
| Chipset |
Realtek RTL8192CE |
| Modulation |
CCK, OFDM |
Performance
| Mac operating systems supported |
Y |
Additionally
| Wireless connections |
Y |
| Transfer rate (Mbps) |
300 Mbit/s |
| Wireless technologies |
Wired |

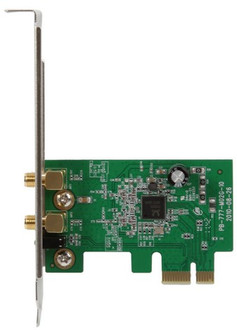

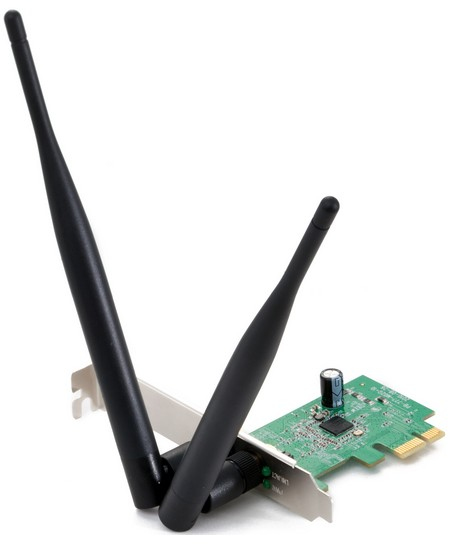

Wireless Adapter IEEE 802.11b/g/n, PCI Express, 300/300Mbps Transfer/Receive Rate, 2T2R, 64-bit/128-bit WEP, TKIP, & AES WPA, WPA2, 2x external detachable 5dBi Antenna
- Complies with IEEE 802.11b, 802.11g and 802.11n standard for 2.4GHz Wireless LAN.
- Compliant with PCI-E Standard.
- Supports Windows 2000/XP/2003/Vista/7 and Linux Kernel 2.6.x.
- Supports MIMO technology with 2x Transmit and 2x Receive.
- Lower power consumption.
- Easy installation and configuration.
- Support WPS.
