Performance
| Throughput |
600 |
| Modulation |
PSK |
| 2.4 GHz |
Y |
| Number of users |
256 user(s) |
| Rate limiting |
Y |
| VLAN support |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Channels quantity |
2 |
| Maximum indoor range |
300 m |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.4 - 2.484, 5.15 - 5.85, 5.15 - 5.875, 2.4 - 2.484 GHz |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
Power
| Input voltage |
12 V |
| Power over Ethernet (PoE) |
Y |
Protocols
| Supported network protocols |
CLI (Telnet), SSH HTTP/S, FTP, TFTP |
| Management protocols |
SNMP |
Antenna
| Detachable antenna(s) |
Y |
| Antenna connector type |
N |
| Antenna gain level (max) |
12 dBi |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
300 Mbit/s |

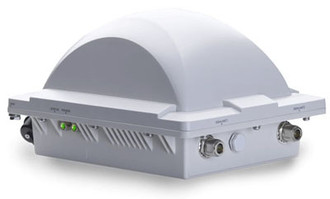

ZoneFlex 7762-S, 2.4GHz/5GHz, 300Mbit/s, IEEE 802.11a/b/g/n, 10/100/1000Mbit/s PoE, IP-67, 1.9kg
<b>One of the World’s First Concurrent 2.4/5GHz 802.11n Sector Access Point for unprecedented range, throughput and reliability</b>
The Ruckus ZoneFlex 7762-S is one of the industry’s first 802.11n outdoor access point featuring a long-range, high-gain sectorized smart antenna array that integrates adaptive antenna technology and unique interference mitigation technology to deliver up to an additional 6dB of BeamFlex gain, physical antenna gain up to 12 dBi and 15 dB of interference mitigation within a 120° azimuth. This advanced smart Wi-Fi design with concurrent 802.11n radios delivers 150 Mbps of sustained throughput between mesh APs 600 meters apart and 50 Mbps of sustained throughput to clients 300 meters away.
The ZoneFlex 7762-S is perfect for providers looking to quickly and economically expand branded broadband services, offload data traffic from congested 3G networks, deploy multimedia hotspots or offer wireless broadband services where fixed line access is limited. Concurrent 2.4/5GHz 802.11n radios for access and backhaul traffic deliver high-throughput to clients.
A directional antenna array and expert QoS software optimize delay-sensitive, IP video and high-density voice over Wi-Fi (VoFi) applications and PoE output allows connecting other devices such as an IP camera. Integrated Smart Mesh Networking technology automates deployment and eliminates running expensive cables to every outdoor AP.
The ZoneFlex 7762-S can be deployed as a standalone AP and managed individually, or centrally managed by the ZoneDirector Smart WLAN controller or through the FlexMaster remote Wi-Fi management system as part of a unified indoor/outdoor wireless LAN. The Ruckus ZoneFlex 7762-S simply plugs into any Ethernet network and is automatically discovered by the ZoneDirector.
