Design
| Cable lock slot |
Kensington |
| Internal |
N |
Power
| Input voltage |
110 - 240 V |
| Input frequency |
50 - 60 Hz |
| Input current |
1.5 A |
| Power over Ethernet (PoE) |
Y |
Protocols
| Management protocols |
SNMP v1/2/3 |
Performance
| 5 GHz |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| 2.4 GHz |
Y |
| Web-based management |
Y |
| Frequency band |
2.4/5 GHz |
Antenna
| Antenna gain level (max) |
8 dBi |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
300 Mbit/s |
Gigabit Ethernet, 802.11a/b/g/n, 2 x RJ-45, 15 W, PoE, DC, 680 g, White
<b>the highest performing enterprise-class dual-band 802.11n Smart Wi-Fi aP with adaptive antenna technology</b>

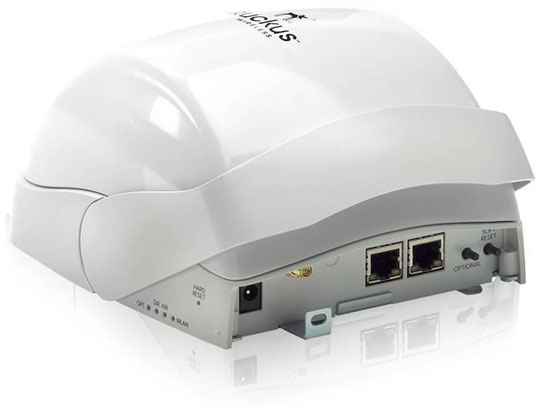

The ZoneFlex 7962 is based on adaptive antenna technology that extends signal range two to four times while minimizing packet loss by constantly routing Wi-Fi transmissions over the highest performing signal paths.
The world’s only enterprise-class AP that concurrently supports Interference Mitigation, spatial multiplexing and adaptive antenna technology, the ZoneFlex 7962 delivers the industry’s most solid 802.11n performance at range. Because the ZoneFlex 7962 is able to constantly find the best RF paths for each packet, once deployed, enterprises never have to worry about constant site surveys as the environment changes.
Using Ruckus’ breakthrough ChannelFly dynamic channel management, ZoneFlex 7962 automatically select the best channel that will give users the highest throughput. Measuring not only interference but throughput as well, ChannelFly analyzes trends in the RF environment over time. When a significant drop in throughput arises, ZoneFlex APs react by automatically switching to the channel that offers the best client throughput potential. Channel change notifications orchestrate a coordinated change with connected clients, ensuring no client left behind.
The ZoneFlex 7962 is also the only 802.11n product purpose-built for hotels, schools and enterprises that enables high-definition IPTV, video-on-demand and other video applications while supporting VoIP and data applications for guests and employees.
Ideal for multimedia and high-density user environments, the ZoneFlex 7962 can be deployed as a standalone access point or as part of centrally-controlled Smart Wireless LAN with the Ruckus ZoneDirector. Smart Mesh Networking, another unique feature, makes the ZoneFlex 7962 perfect for reliably extending wireless LAN services to areas where cabling Ethernet isn’t possible or economical — saving time and money. With dual radios, the ZoneFlex 7962 delivers high-performance throughout the mesh network.
