Power
| Power factor |
0.99 |
| Input operation voltage (max) |
300 V |
| Input operation voltage (min) |
110 V |
| Efficiency |
88% |
| Output voltage THD |
3% |
| Power supply input frequency |
50/60 Hz |
| Input current THD |
5% |
| Output power capacity |
1000 VA |
| Crest factor |
3:1 |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Output voltage regulation |
2% |
| Output frequency regulation |
0.2 Hz |
| Output power |
800 W |
Performance
| Noise level |
50 dB |
| Audible alarm(s) |
Y |
| Cooling type |
Active |
| Number of input phases |
1 |
| Number of output phases |
1 |
Certificates
| Safety |
EN-62040-1, EN-60950-1, EN-60529 |
Battery
| Battery voltage |
12 V |
| Cold start |
Y |
Operational conditions
| Operating altitude |
0 - 1000 m |

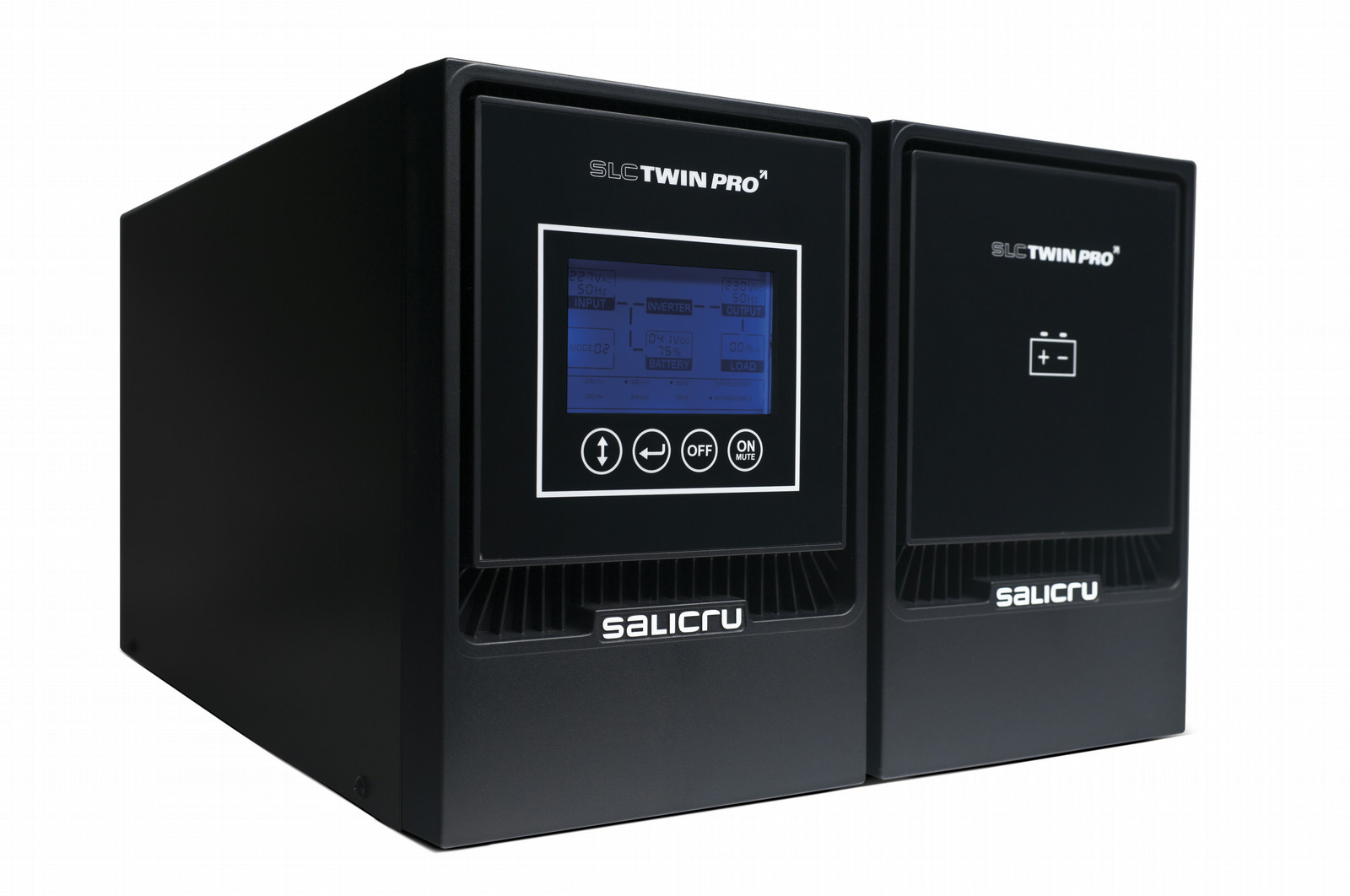

SLC-1000 TWIN PRO (B1) Extra Large back up time, 1000VA, 800W, Tower, USB
Covering a wide range of powers from 700 VA to 20 kVA, SALICRU’s SLC TWIN PRO series gives maximum reliability in electrical protection for businesses and industry.
With its double conversion On-line technology, the most reliable technology on the market, the SLC TWIN PRO series is a single phase output UPS (with single phase input from 700 VA to 10 kVA and three-phase input from 8 kVA to 20 kVA), with an output power factor of 0.9, broad communication options via interface + monitoring/automatic file closing shutdown software, batteries for standard autonomy integrated in the cabinet itself, option of extending back-up for processes requiring greater available autonomy and options of parallel/redundant operation up to 4 units for installations growing in qualitative and quantitative demands.
Added performances include the standard static and maintenance bypasses, the low input current distortion (THDi) under 5%, small footprint in both standard and extended autonomies, full information obtained from the LCD/graphic display or the possibility of working in frequency converter mode.
