Display
| Display diagonal |
40 " |
| Vertical scan range |
56 - 85 Hz |
| Viewable size diagonal |
1016 mm |
| Aspect ratio |
16:9 |
| HD-Ready |
Y |
| Contrast ratio (dynamic) |
6000:1 |
| Response time |
8 ms |
| Picture-in-Picture |
Y |
| Contrast ratio (typical) |
3000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Pixel pitch |
0.46125 x 0.46125 mm |
| Display viewable area HxV |
885.6 x 498.15 mm |
| Display brightness |
450 cd/m² |
| Full HD |
Y |
Ports & interfaces
| Cables included |
AC, VGA |
| Composite video in |
1 |
| DVI-D ports quantity |
1 |
| Audio input |
2 |
| Audio output |
1 |
| USB 2.0 ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Ergonomics
| Pivot |
Y |
| Placement supported |
Horizontal |
| Automatic brightness control |
Y |
| VESA mounting interfaces |
600 x 400 mm |
| Automatic temperature control |
Y |
| Wall mountable |
Y |
Weight & dimensions
| Dimensions (W x D x H) with stand |
1085 x 310 x 703 mm |
| Depth |
128.1 mm |
| Weight |
24800 g |
| Width |
973.2 mm |
| Height |
584.4 mm |
Performance
| Number of speakers |
2 |
| Plug and Play |
Y |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Y |
Power
| Power consumption (typical) |
193 W |
| Power consumption (standby) |
1 W |
| AC input frequency |
50/60 Hz |
| Energy Star certified |
Y |
| Power supply type |
AC |
Operational conditions
| Operating relative humidity (H-H) |
10 - 80% |
Packaging content
| Handheld remote control |
Y |
Certificates
| Certification |
FCC (USA): FCC 15, Subpart B A\nCE (Europe): EN55022, EN55024\nVCCI (Japan): V-3\nKCC (Korea): KN22, KN24\nBSMI (Taiwan): CNS13438\nC-Tick (Australia): AS/NZS3548\nCCC (China): GB 9254-2008, GB 17625.1-2003 |
Other features
| On Screen Display (OSD) |
Y |
Additionally
| Display scan frequency (horizontal) |
30 - 81 kHz |
| Display number of colors |
16.78 million colours |
| Colour of product |
Black |
| RS-232 port |
2 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
10 - 40 °C |
101.6 cm (40 ") S-PVA (B-DID), 1920 x 1080, 450cd/m², 6000:1, 3000:1, 8 ms, D-SUB, DVI-D, Display Port, CVBS, HDMI, Componente, RJ45, RS232C, USB B, Energy Star 5.0
Crisp Graphics and Natural Color

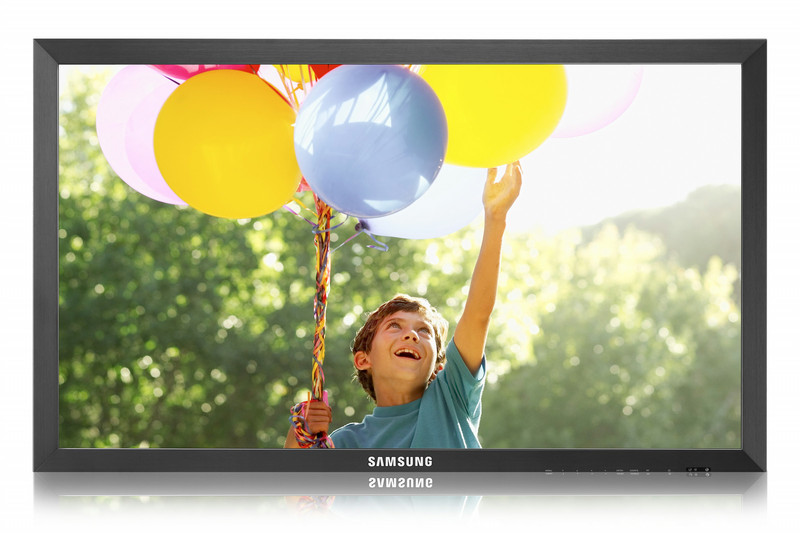

The Samsung 400TS-3 LCD display panel features a resolution of 1920 x 1080. It also has up to 450 nits brightness, 8ms response time and up to 6,000:1 dynamic contrast ratio for impactful motion graphics that are sharp and full of detail.
Display Higher-Bandwidth Content
Create a professional digital display experience without having to purchase additional distributor or external equipment. Samsung makes it easy with a DisplayPort that delivers enhanced connectivity and an improved display interface. The DisplayPort connection lets you take advantage of todays high-bandwidth content, enabling you to create a professional and powerfully compelling digital signage solution. Additional connectivity includes VGA, Composite, DVI, HDMI and the new RJ45 LAN for simplified display control over a network.
Optional Integrated PC Module with MagicInfo Software
The 400TS-3 can deliver easy content control over multiple monitors by adding an optional Samsung SIM-NT integrated PC module to the 400TS-3 expansion slot. Content can be monitored and created with convenience, enabling you to optimize your digital signage for maximum impact.
Fast and Accurate Touch Sensitive Infrared Technology
This Samsung display is ready to interact with your customers. It features fast and accurate touch sensitive Infrared (IR) technology which will draw in users and keep them engaged. It reacts quickly to touch-in corners or anywhere on the display. Customers enjoy more interaction with access to the entire screen.
Integrated Speakers
Produce more impact with a great picture along with crisp audio. The 400TS-3 has built-in stereo speakers to complete the multimedia experience without having to purchase or wire external speakers.
Energy-Efficient
Samsung is committed to creating more efficient, more environmentally conscious technologies. From manufacturing to shipping to the way your product operates, were always looking for a better way of doing things. This Samsung LFD saves energy by being able to automatically adjust its bright levels as ambient light changes thus reducing the energy being used.
