Ports & interfaces
PC Audio in |
Y |
DVI port |
Y |
VGA (D-Sub) input ports |
1 |
Composite video in |
1 |
DVI-D ports quantity |
1 |
USB ports quantity |
1 |
RS-232C |
Y |
USB version |
2.0 |
HDMI ports quantity |
1 |
Component video (YPbPr/YCbCr) in |
1 |
Design
Bezel width (top) |
9.5 mm |
Bezel width (bottom) |
15 mm |
Performance
Multi-display supported |
N |
TV tuner integrated |
N |
HDCP |
N |
Wi-Fi |
Y |
Display
HD type |
Full HD |
Display type |
LED |
Technical details
LED backlighting type |
Direct-LED BLU |
Ambient light sensor |
Y |
Contrast ratio |
5.000:1 |
Other features
Compatible memory cards |
SD |
Card reader integrated |
Y |
Packaging data
Handheld remote control |
Y |
Batteries included |
Y |
Quick start guide |
Y |
Warranty card |
Y |
Computer system
Internal storage capacity |
8 GB |
Internal memory |
1.5 GB |
Processor frequency |
1 GHz |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |
Ethernet LAN connection |
Y |
Energy efficiency compliance |
B |

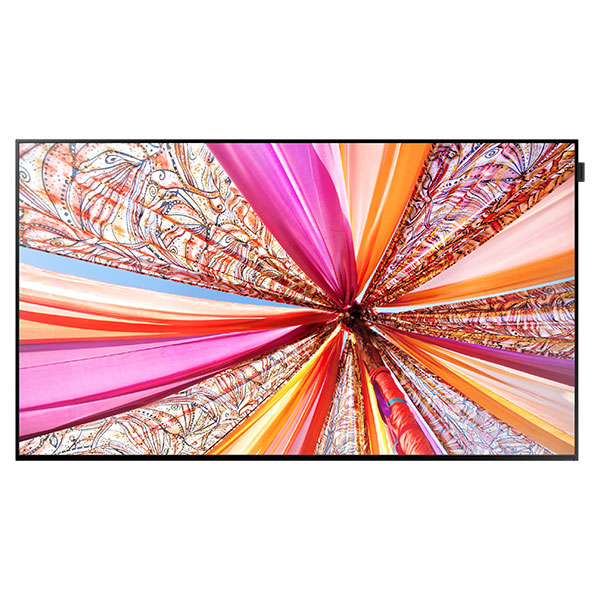

139.7 cm (55 ") LED 1920x1080, 16:9, 8ms, SoC, Cortex-A9 1GHz, 1x USB 2.0, Wi-Fi, RJ45, IR, Ambient Light, VGA, DVI-D, HDMI
Enhanced System-on-Chip Performance with a Quad Core CPU
Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.
Sleek Industrial Design
The 9.5mm bezel provides a sleek, elegant look that can be polished with optional customizable bezel trim kits in matte black or white. And the stylish, ultra-slim 2.0" chassis helps simplify installation while meeting ADA compliance requirements.
Slim Direct-Lit LED Backlight
Achieve sharp, detail-rich images and crisp, legible type with this slim direct-lit display featuring 1920 x 1080 Full HD resolution with 350 nits brightness and a 5,000:1 contrast ratio.
Optional Touch Overlay
The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
MagicInfo S3 Digital Signage Software
Create playlists, set playback schedules and publish content directly to the display with this software. Most traditional file formats are supported including RSS feed and live web pages.
