Performance
| Operating hours (hours/days) |
24/7 |
| SMART Signage TV (SSTV) |
Y |
| TV tuner integrated |
Y |
| HDCP |
Y |
| Wi-Fi |
Y |
Packaging data
| Quick start guide |
Y |
| Handheld remote control |
Y |
| Batteries included |
Y |
Ports & interfaces
| USB version |
2.0 |
| HDMI ports quantity |
1 |
| DVI port |
Y |
| Audio (L,R) out |
1 |
| VGA (D-Sub) input ports |
1 |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
1 |
| USB ports quantity |
1 |
Display
| Display type |
LED |
| HD type |
Full HD |
| Native aspect ratio |
16:9 |
Design
| Bezel width (top) |
9.5 mm |
| Bezel width (bottom) |
15 mm |
Computer system
| Computer system |
Y |
| Computer system type |
System on Chip (SoC) |
| Processor cores |
4 |
| Internal storage capacity |
8 GB |
| Internal memory |
1.5 GB |
| Processor frequency |
1 GHz |
Other features
| Compatible memory cards |
SD |
| Card reader integrated |
Y |
Technical details
| LED backlighting type |
Direct-LED |

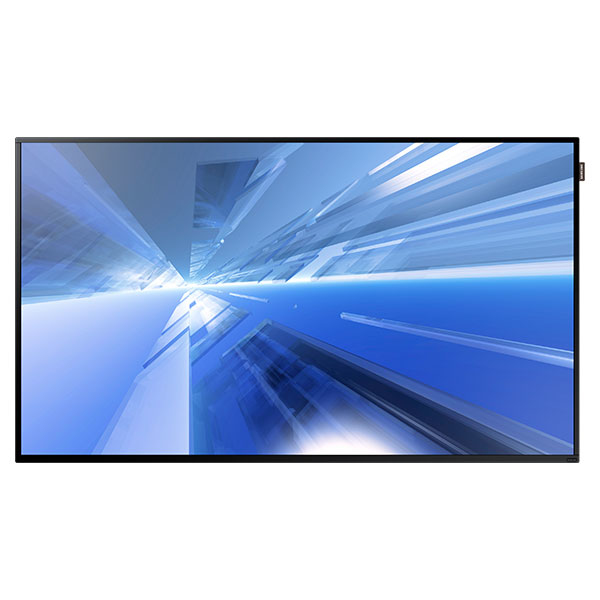

101.6 cm (40 ") LED, 1920 x 1080, 700 cd/m², 10W x 2, 16:9, 5000:1, 8 ms, DVI-D, D-sub, Display Port, HDMI, USB 2.0, Recertified
Reliable 24/7 Continuous Operation
These commercial displays are designed from the chassis up to deliver a high quality image with exceptional reliability, even during 24/7 continuous operation, thanks to innovative cooling technologies. So your business can meet around the clock operating requirements.
High Def with High 700-Nit Brightness
Experience sharp, stunning images with 1920 x 1080 Full HD resolution. And with 700-nit brightness, your message will be visible even in brightly-lit environments.
Enhanced SoC Performance with Quad-Core
Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.
Sleek Industrial Design
The 9.5mm bezel provides a sleek, elegant look that can be polished with optional customizable color bezel trim kits. And the stylish, ultra-slim 2.0" chassis helps simplify installation while meeting ADA compliance requirements.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
Optional Touch Overlay
The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
MagicInfo S3 Digital Signage Software
Create playlists, set playback schedules and publish content directly to the display with this software. Most traditional file formats are supported including RSS feed and live web pages.
